Applications

  • Final filter for cleanrooms
  • Healthcare

Highlights

  • High quality glass fiber media
  • Individiual test certificate (acc. to EN 1822 – ISO 29463)
  • Disposable
  • Optimized velocity distribution
  • Suitable for HEPA Boxes and Cabinets

Technical Specifications

Filter Standard:EN 1822 and ISO 29463Max. Operating Tempature:80˚C
Filter Class:H13 - H14Faceguard:Aluminium sheet (powder coated)
Media:High quality glass fiberGasket:EPDM flat, EPDM flat continous
and PU foam
Frame:MDFSealing Compound:Two component polyurethane
Rec. Final Pressure Drop:Initial pressure drop x2,
(max. 600 Pa)
Seperator:Hotmelt

Order Code

Filter TypeFilter
Class
FramePleat HeightDimensions (mm)FaceguardGasket
HC : HEPA Ceiling
Filter - MDF Frame
H13
H14
M: MDF1: 50 mm
2: 65 mm
3: 75 mm
4: 85 mm
5: 90 mm
6: 100 mm
7: 125 mm
610x610x78FW: Without
FC: On Clean Side
FD: On Dirty Side
FB: On Both Sides
W: Without
P: Continuous Pu Foam
PP: Pu Foam on Both Side
E: EPDM Flat
EE: EPDM Flat on Both Side
C: Continuous Grey EPDM
CC: Grey EPDM on Both Side
U: U Gasket

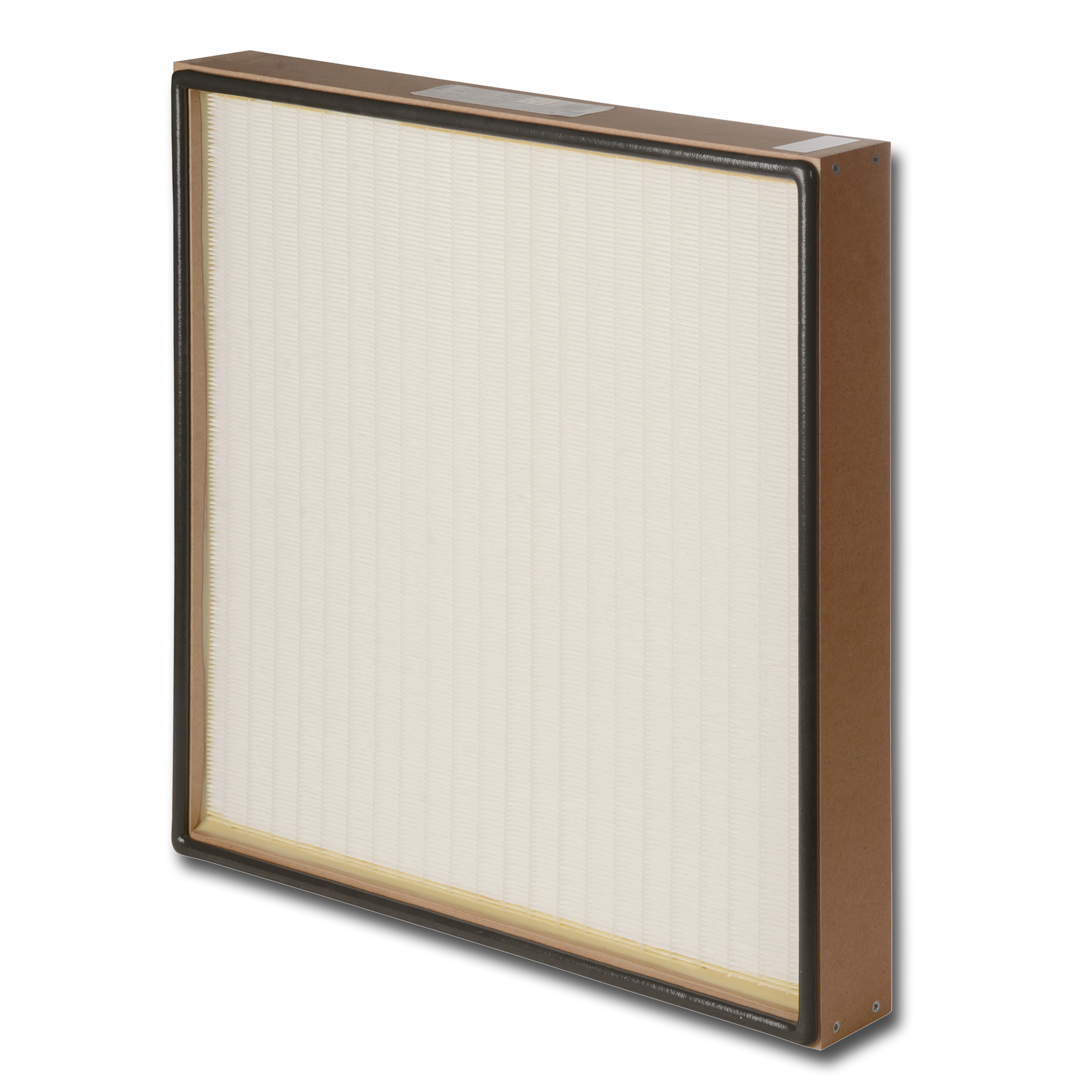

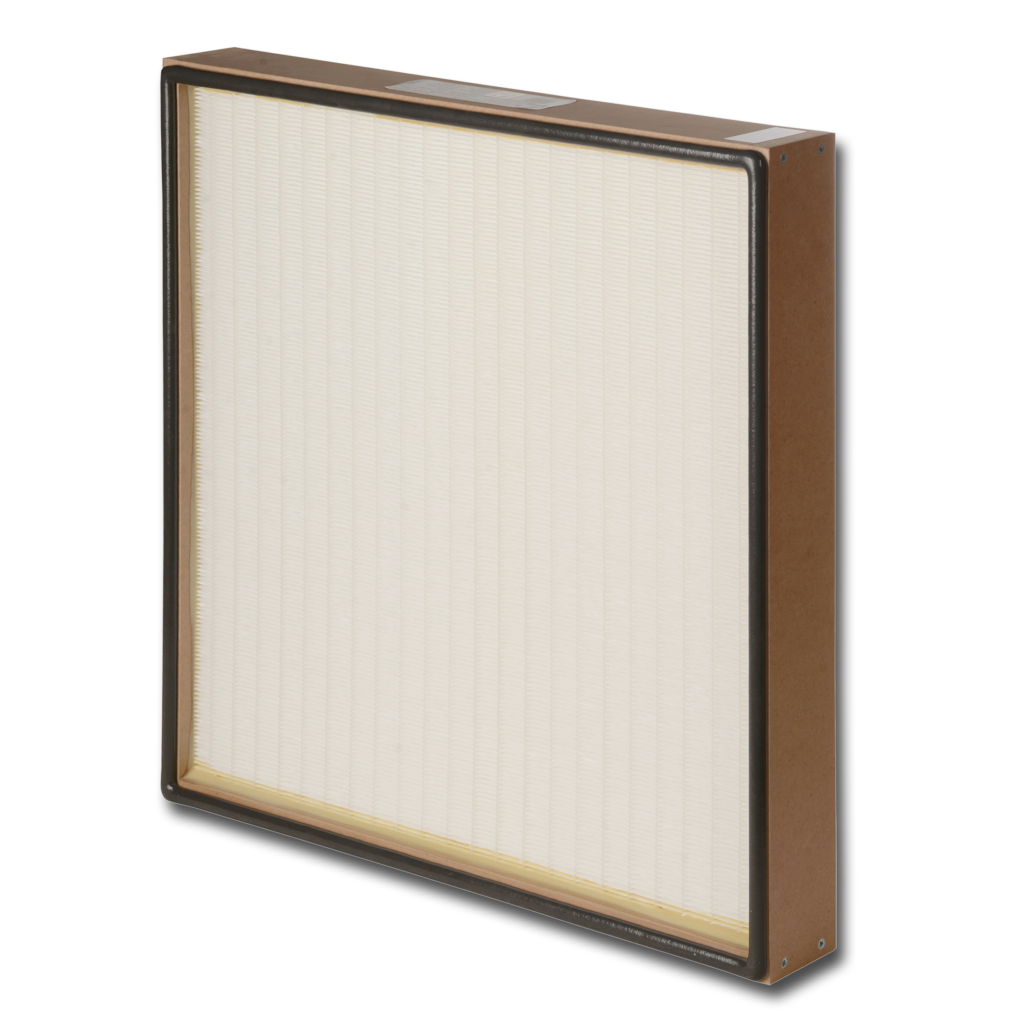

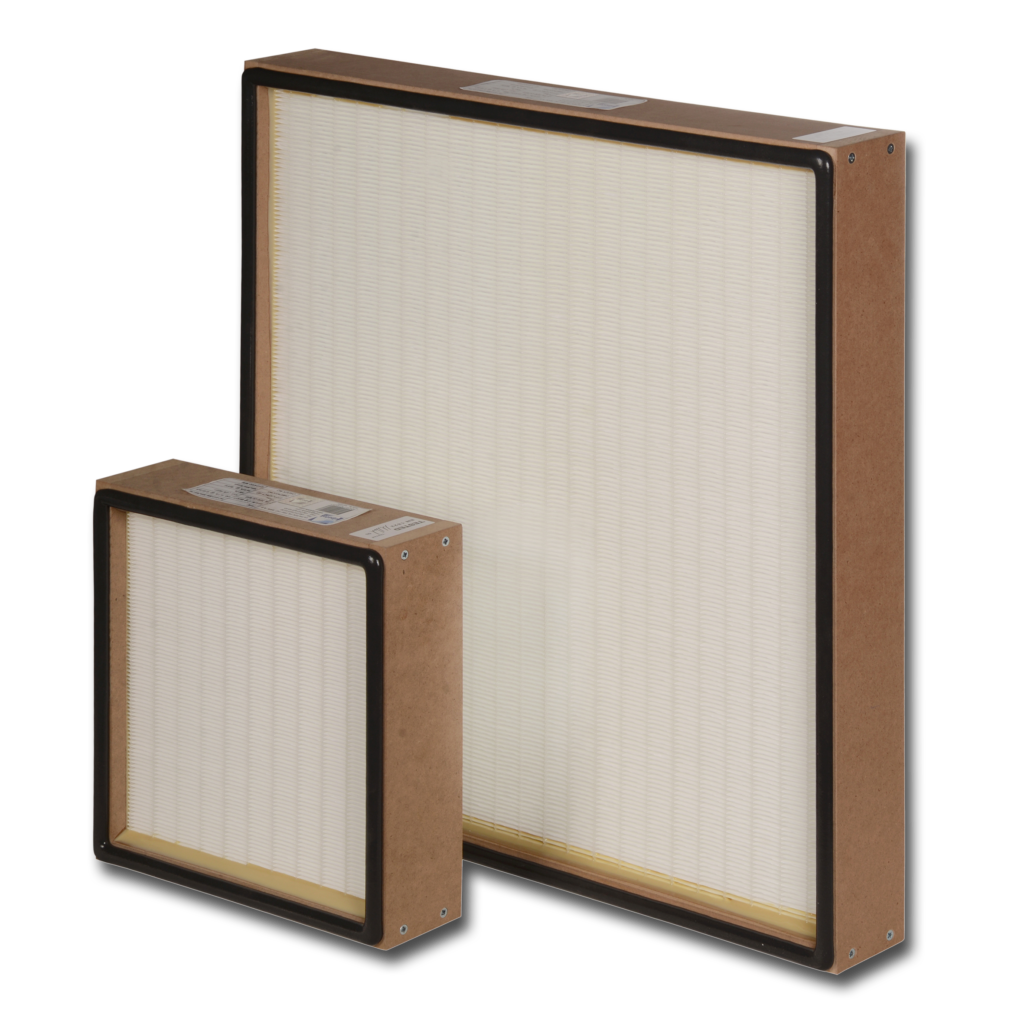

HEPA CEILING FILTER (MDF FRAME) - HC 66

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-1-203-203-66-FW-PH13ISO 35 H203x203x6615070100
HC-H13-M-1-305-305-66-FW-PH13ISO 35 H305x305x662,350150100
HC-H13-M-1-305-610-66-FW-PH13ISO 35 H305x610x664,550300100
HC-H13-M-1-457-457-66-FW-PH13ISO 35 H457x457x66550340100
HC-H13-M-1-457-610-66-FW-PH13ISO 35 H457x610x666,750450100
HC-H13-M-1-535-535-66-FW-PH13ISO 35 H535x535x666,950470100
HC-H13-M-1-575-575-66-FW-PH13ISO 35 H575x575x66850540100
HC-H13-M-1-610-610-66-FW-PH13ISO 35 H610x610x66950600100
HC-H13-M-1-610-762-66-FW-PH13ISO 35 H610x762x6611,250750100
HC-H13-M-1-610-915-66-FW-PH13ISO 35 H610x915x6613,550900100
HC-H13-M-1-762-762-66-FW-PH13ISO 35 H762x762x661450940100
HC-H13-M-1-762-915-66-FW-PH13ISO 35 H762x915x6616,9501130100
HC-H13-M-1-610-1220-66-FW-PH13ISO 35 H610x1220x6618501200100
HC-H13-M-1-915-915-66-FW-PH13ISO 35 H915x915x6620,3501350100
HC-H14-M-1-203-203-66-FW-PH14ISO 45 H203x203x6615070125
HC-H14-M-1-305-305-66-FW-PH14ISO 45 H305x305x662,450150125
HC-H14-M-1-305-610-66-FW-PH14ISO 45 H305x610x664,750300125
HC-H14-M-1-457-457-66-FW-PH14ISO 45 H457x457x665,350340125
HC-H14-M-1-457-610-66-FW-PH14ISO 45 H457x610x66750450125
HC-H14-M-1-535-535-66-FW-PH14ISO 45 H535x535x667,250470125
HC-H14-M-1-575-575-66-FW-PH14ISO 45 H575x575x668,450540125
HC-H14-M-1-610-610-66-FW-PH14ISO 45 H610x610x669,450600125
HC-H14-M-1-610-762-66-FW-PH14ISO 45 H610x762x6611,850750125
HC-H14-M-1-610-915-66-FW-PH14ISO 45 H610x915x661450900125
HC-H14-M-1-762-762-66-FW-PH14ISO 45 H762x762x6614,750940125
HC-H14-M-1-762-915-66-FW-PH14ISO 45 H762x915x6617,6501130125
HC-H14-M-1-610-1220-66-FW-PH14ISO 45 H610x1220x6618,8501200125
HC-H14-M-1-915-915-66-FW-PH14ISO 45 H915x915x6621,2501350125

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 69

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-1-203-203-69-FW-PH13ISO 35 H203x203x6915070100
HC-H13-M-1-305-305-69-FW-PH13ISO 35 H305x305x692,350150100
HC-H13-M-1-305-610-69-FW-PH13ISO 35 H305x610x694,550300100
HC-H13-M-1-457-457-69-FW-PH13ISO 35 H457x457x69550340100
HC-H13-M-1-457-610-69-FW-PH13ISO 35 H457x610x696,750450100
HC-H13-M-1-535-535-69-FW-PH13ISO 35 H535x535x696,950470100
HC-H13-M-1-575-575-69-FW-PH13ISO 35 H575x575x69850540100
HC-H13-M-1-610-610-69-FW-PH13ISO 35 H610x610x69950600100
HC-H13-M-1-610-762-69-FW-PH13ISO 35 H610x762x6911,250750100
HC-H13-M-1-610-915-69-FW-PH13ISO 35 H610x915x6913,550900100
HC-H13-M-1-762-762-69-FW-PH13ISO 35 H762x762x691450940100
HC-H13-M-1-762-915-69-FW-PH13ISO 35 H762x915x6916,9501130100
HC-H13-M-1-610-1220-69-FW-PH13ISO 35 H610x1220x6918501200100
HC-H13-M-1-915-915-69-FW-PH13ISO 35 H915x915x6920,3501350100
HC-H14-M-1-203-203-69-FW-PH14ISO 45 H203x203x6915070125
HC-H14-M-1-305-305-69-FW-PH14ISO 45 H305x305x692,450150125
HC-H14-M-1-305-610-69-FW-PH14ISO 45 H305x610x694,750300125
HC-H14-M-1-457-457-69-FW-PH14ISO 45 H457x457x695,350340125
HC-H14-M-1-457-610-69-FW-PH14ISO 45 H457x610x69750450125
HC-H14-M-1-535-535-69-FW-PH14ISO 45 H535x535x697,250470125
HC-H14-M-1-575-575-69-FW-PH14ISO 45 H575x575x698,450540125
HC-H14-M-1-610-610-69-FW-PH14ISO 45 H610x610x699,450600125
HC-H14-M-1-610-762-69-FW-PH14ISO 45 H610x762x6911,850750125
HC-H14-M-1-610-915-69-FW-PH14ISO 45 H610x915x691450900125
HC-H14-M-1-762-762-69-FW-PH14ISO 45 H762x762x6914,750940125
HC-H14-M-1-762-915-69-FW-PH14ISO 45 H762x915x6917,6501130125
HC-H14-M-1-610-1220-69-FW-PH14ISO 45 H610x1220x6918,8501200125
HC-H14-M-1-915-915-69-FW-PH14ISO 45 H915x915x6921,2501350125

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 78

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-1-203-203-78-FW-PH13ISO 35 H203x203x7815070100
HC-H13-M-1-305-305-78-FW-PH13ISO 35 H305x305x782,350150100
HC-H13-M-1-305-610-78-FW-PH13ISO 35 H305x610x784,550300100
HC-H13-M-1-457-457-78-FW-PH13ISO 35 H457x457x78550340100
HC-H13-M-1-457-610-78-FW-PH13ISO 35 H457x610x786,750450100
HC-H13-M-1-535-535-78-FW-PH13ISO 35 H535x535x786,950470100
HC-H13-M-1-575-575-78-FW-PH13ISO 35 H575x575x78850540100
HC-H13-M-1-610-610-78-FW-PH13ISO 35 H610x610x78950600100
HC-H13-M-1-610-762-78-FW-PH13ISO 35 H610x762x7811,250750100
HC-H13-M-1-610-915-78-FW-PH13ISO 35 H610x915x7813,550900100
HC-H13-M-1-762-762-78-FW-PH13ISO 35 H762x762x781450940100
HC-H13-M-1-762-915-78-FW-PH13ISO 35 H762x915x7816,9501130100
HC-H13-M-1-610-1220-78-FW-PH13ISO 35 H610x1220x7818501200100
HC-H13-M-1-915-915-78-FW-PH13ISO 35 H915x915x7820,3501350100
HC-H14-M-1-203-203-78-FW-PH14ISO 45 H203x203x7815070125
HC-H14-M-1-305-305-78-FW-PH14ISO 45 H305x305x782,450150125
HC-H14-M-1-305-610-78-FW-PH14ISO 45 H305x610x784,750300125
HC-H14-M-1-457-457-78-FW-PH14ISO 45 H457x457x785,350340125
HC-H14-M-1-457-610-78-FW-PH14ISO 45 H457x610x78750450125
HC-H14-M-1-535-535-78-FW-PH14ISO 45 H535x535x787,250470125
HC-H14-M-1-575-575-78-FW-PH14ISO 45 H575x575x788,450540125
HC-H14-M-1-610-610-78-FW-PH14ISO 45 H610x610x789,450600125
HC-H14-M-1-610-762-78-FW-PH14ISO 45 H610x762x7811,850750125
HC-H14-M-1-610-915-78-FW-PH14ISO 45 H610x915x781450900125
HC-H14-M-1-762-762-78-FW-PH14ISO 45 H762x762x7814,750940125
HC-H14-M-1-762-915-78-FW-PH14ISO 45 H762x915x7817,6501130125
HC-H14-M-1-610-1220-78-FW-PH14ISO 45 H610x1220x7818,8501200125
HC-H14-M-1-915-915-78-FW-PH14ISO 45 H915x915x7821,2501350125

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 90

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-2-203-203-90-FW-PH13ISO 35 H203x203x901,3657085
HC-H13-M-2-305-305-90-FW-PH13ISO 35 H305x305x902,96515085
HC-H13-M-2-305-610-90-FW-PH13ISO 35 H305x610x905,86530085
HC-H13-M-2-457-457-90-FW-PH13ISO 35 H457x457x906,66534085
HC-H13-M-2-457-610-90-FW-PH13ISO 35 H457x610x908,86545085
HC-H13-M-2-535-535-90-FW-PH13ISO 35 H535x535x9096547085
HC-H13-M-2-575-575-90-FW-PH13ISO 35 H575x575x9010,46554085
HC-H13-M-2-610-610-90-FW-PH13ISO 35 H610x610x9011,76560085
HC-H13-M-2-610-762-90-FW-PH13ISO 35 H610x762x9014,66575085
HC-H13-M-2-610-915-90-FW-PH13ISO 35 H610x915x9017,56590085
HC-H13-M-2-762-762-90-FW-PH13ISO 35 H762x762x9018,26594085
HC-H13-M-2-762-915-90-FW-PH13ISO 35 H762x915x9021,965113085
HC-H13-M-2-610-1220-90-FW-PH13ISO 35 H610x1220x9023,465120085
HC-H13-M-2-915-915-90-FW-PH13ISO 35 H915x915x9026,365135085
HC-H14-M-2-203-203-90-FW-PH14ISO 45 H203x203x901,46570110
HC-H14-M-2-305-305-90-FW-PH14ISO 45 H305x305x90365150110
HC-H14-M-2-305-610-90-FW-PH14ISO 45 H305x610x90665300110
HC-H14-M-2-457-457-90-FW-PH14ISO 45 H457x457x906,965340110
HC-H14-M-2-457-610-90-FW-PH14ISO 45 H457x610x90965450110
HC-H14-M-2-535-535-90-FW-PH14ISO 45 H535x535x909,465470110
HC-H14-M-2-575-575-90-FW-PH14ISO 45 H575x575x9010,865540110
HC-H14-M-2-610-610-90-FW-PH14ISO 45 H610x610x9012,265600110
HC-H14-M-2-610-762-90-FW-PH14ISO 45 H610x762x9015,265750110
HC-H14-M-2-610-915-90-FW-PH14ISO 45 H610x915x9018,365900110
HC-H14-M-2-762-762-90-FW-PH14ISO 45 H762x762x901965940110
HC-H14-M-2-762-915-90-FW-PH14ISO 45 H762x915x9022,9651130110
HC-H14-M-2-610-1220-90-FW-PH14ISO 45 H610x1220x9024,4651200110
HC-H14-M-2-915-915-90-FW-PH14ISO 45 H915x915x9027,5651350110

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 100

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-3-305-305-100-FW-PH13ISO 35 H305x305x1003,47515075
HC-H13-M-3-305-610-100-FW-PH13ISO 35 H305x610x1006,87530075
HC-H13-M-3-457-457-100-FW-PH13ISO 35 H457x457x1007,67534075
HC-H13-M-3-610-610-100-FW-PH13ISO 35 H610x610x10013,57560075
HC-H13-M-3-610-915-100-FW-PH13ISO 35 H610x915x10020,37590075
HC-H13-M-3-610-1220-100-FW-PH13ISO 35 H610x1220x1002775120075
HC-H14-M-3-305-305-100-FW-PH14ISO 45 H305x305x1003,57515090
HC-H14-M-3-305-610-100-FW-PH14ISO 45 H305x610x10077530090
HC-H14-M-3-457-457-100-FW-PH14ISO 45 H457x457x1007,97534090
HC-H14-M-3-610-610-100-FW-PH14ISO 45 H610x610x100147560090
HC-H14-M-3-610-915-100-FW-PH14ISO 45 H610x915x10021,27590090
HC-H14-M-3-610-1220-100-FW-PH14ISO 45 H610x1220x10028,275120090

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 110

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-4-305-305-110-FW-PH13ISO 35 H305x305x1103,88515070
HC-H13-M-4-305-610-110-FW-PH13ISO 35 H305x610x1107,68530070
HC-H13-M-4-457-457-110-FW-PH13ISO 35 H457x457x1108,68534070
HC-H13-M-4-610-610-110-FW-PH13ISO 35 H610x610x11015,38560070
HC-H13-M-4-610-915-110-FW-PH13ISO 35 H610x915x11022,98590070
HC-H13-M-4-610-1220-110-FW-PH13ISO 35 H610x1220x11030,685120070
HC-H14-M-4-305-305-110-FW-PH14ISO 45 H305x305x11048515085
HC-H14-M-4-305-610-110-FW-PH14ISO 45 H305x610x11088530085
HC-H14-M-4-457-457-110-FW-PH14ISO 45 H457x457x11098534085
HC-H14-M-4-610-610-110-FW-PH14ISO 45 H610x610x110168560085
HC-H14-M-4-610-915-110-FW-PH14ISO 45 H610x915x110248590085
HC-H14-M-4-610-1220-110-FW-PH14ISO 45 H610x1220x1103285120085

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 117

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-5-305-305-117-FW-PH13ISO 35 H305x305x1173,89015070
HC-H13-M-5-305-610-117-FW-PH13ISO 35 H305x610x1177,69030070
HC-H13-M-5-457-457-117-FW-PH13ISO 35 H457x457x1178,69034070
HC-H13-M-5-610-610-117-FW-PH13ISO 35 H610x610x11715,39060070
HC-H13-M-5-610-915-117-FW-PH13ISO 35 H610x915x11722,99090070
HC-H13-M-5-610-1220-117-FW-PH13ISO 35 H610x1220x11730,690120070
HC-H14-M-5-305-305-117-FW-PH14ISO 45 H305x305x11749015085
HC-H14-M-5-305-610-117-FW-PH14ISO 45 H305x610x11789030085
HC-H14-M-5-457-457-117-FW-PH14ISO 45 H457x457x11799034085
HC-H14-M-5-610-610-117-FW-PH14ISO 45 H610x610x117169060085
HC-H14-M-5-610-915-117-FW-PH14ISO 45 H610x915x117249090085
HC-H14-M-5-610-1220-117-FW-PH14ISO 45 H610x1220x1173290120085

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 125

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-6-305-305-125-FW-PH13ISO 35 H305x305x1253,810015065
HC-H13-M-6-305-610-125-FW-PH13ISO 35 H305x610x1257,610030065
HC-H13-M-6-457-457-125-FW-PH13ISO 35 H457x457x1258,610034065
HC-H13-M-6-610-610-125-FW-PH13ISO 35 H610x610x12515,310060065
HC-H13-M-6-610-915-125-FW-PH13ISO 35 H610x915x12522,910090065
HC-H13-M-6-610-1220-125-FW-PH13ISO 35 H610x1220x12530,6100120065
HC-H14-M-6-305-305-125-FW-PH14ISO 45 H305x305x125410015080
HC-H14-M-6-305-610-125-FW-PH14ISO 45 H305x610x125810030080
HC-H14-M-6-457-457-125-FW-PH14ISO 45 H457x457x125910034080
HC-H14-M-6-610-610-125-FW-PH14ISO 45 H610x610x1251610060080
HC-H14-M-6-610-915-125-FW-PH14ISO 45 H610x915x1252410090080
HC-H14-M-6-610-1220-125-FW-PH14ISO 45 H610x1220x12532100120080

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

HEPA CEILING FILTER (MDF FRAME) - HC 150

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-M-7-305-305-150-FW-PH13ISO 35 H305x305x1505,612515055
HC-H13-M-7-305-610-150-FW-PH13ISO 35 H305x610x15011,312530055
HC-H13-M-7-457-457-150-FW-PH13ISO 35 H457x457x15012,612534055
HC-H13-M-7-610-610-150-FW-PH13ISO 35 H610x610x15022,512560055
HC-H13-M-7-610-915-150-FW-PH13ISO 35 H610x915x15033,812590055
HC-H13-M-7-610-1220-150-FW-PH13ISO 35 H610x1220x15045125120055
HC-H14-M-7-305-305-150-FW-PH14ISO 45 H305x305x1505,912515070
HC-H14-M-7-305-610-150-FW-PH14ISO 45 H305x610x15011,812530070
HC-H14-M-7-457-457-150-FW-PH14ISO 45 H457x457x15013,212534070
HC-H14-M-7-610-610-150-FW-PH14ISO 45 H610x610x15023,512560070
HC-H14-M-7-610-915-150-FW-PH14ISO 45 H610x915x15035,312590070
HC-H14-M-7-610-1220-150-FW-PH14ISO 45 H610x1220x15047125120070

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”
