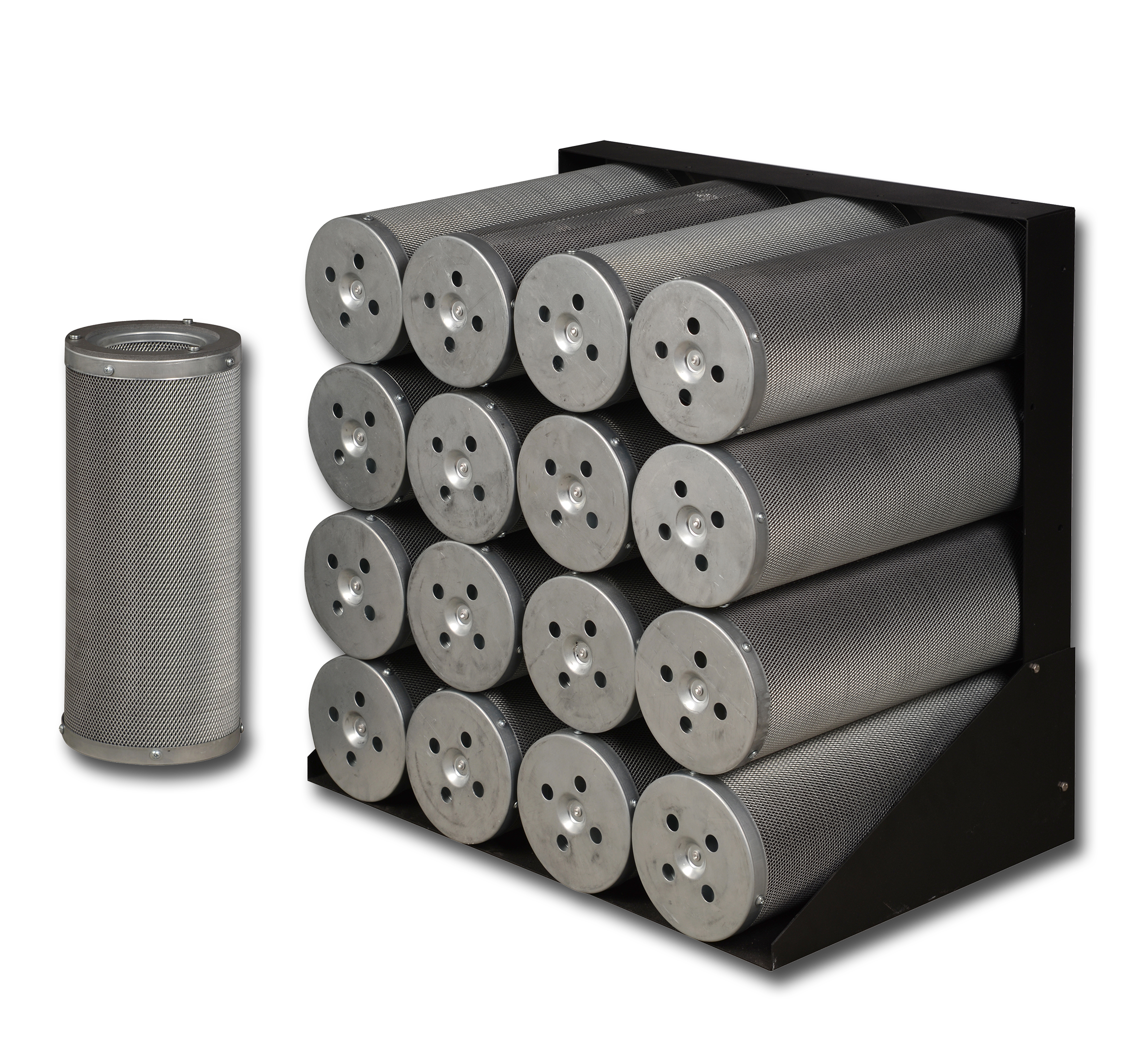

Applications
- Smell and corrosion control in industrial and commercial applications
- Kitchen ventilation
- Wide range of molecular contamination issues
Highlights
- High efficiency in gas filtration
- Pellet (granulated) activated carbon
- Easy assembly to mounting frame
- Robust and air tight
- Filled with a wide variety of activated carbon medias including impregnate medias
- Filled on vibration table to prevent any space
Technical Specifications
| Media: | Activated Carbon Impregnated Medias | Gasket: | EPDM (for each cartridge) | |
| Frame: | Galvanized and painting steel | Outer Diameter: | 145 mm | |
| Max. Operating Temperature: | 50°C | Recommended relative humidity: | < 70% RH |
Order Code
| Filter Type | Frame | Capacity | Number of Cartridges | Media | Dimensions (mm) |
|---|---|---|---|---|---|
| AC : Activated Carbon Cartridge Type Filter | P: Powder Coated G: Galvanized Metal | M: Standard H: High | 4 8 12 16 | AC: Activated Carbon (Virgin) +11: 11% Potassium Permanganate +11/AC: 11% Potassium Permanganate +AC KOH: Potassium Hydroxide Kl4%: Potassium Iodide ACPA: Phosphoric Acid S: Sulphur TB: Triple Blend (KOH + AC + 11%) Z: Special | 610x610x400 |
| Filter Model | Filter Media | Filter Type | Dimensions WxHxD (mm) | Nominal Airflow (m³/h) | Pressure Drop (Pa) | Cartridge Number (pcs.) | Cartridge Volume (dm³) |
|---|---|---|---|---|---|---|---|
| AC-G-H-4-AC-305-305-400 | AC | Cartridge Filter | 305x305x400 | 600 | 150 | 4 | >4,7 |
| AC-G-H-8-AC-305-610-400 | AC | Cartridge Filter | 305x610x400 | 1200 | 150 | 8 | >4,7 |
| AC-G-H-12-AC-508-610-400 | AC | Cartridge Filter | 508x610x400 | 2000 | 150 | 12 | >4,7 |
| AC-G-H-16-AC-610-610-400 | AC | Cartridge Filter | 610x610x400 | 2400 | 150 | 16 | >4,7 |
| AC-G-H-4-AC-305-305-450 | AC | Cartridge Filter | 305x305x450 | 640 | 150 | 4 | >5,3 |
| AC-G-H-8-AC-305-610-450 | AC | Cartridge Filter | 305x610x450 | 1280 | 150 | 8 | >5,3 |
| AC-G-H-12-AC-508-610-450 | AC | Cartridge Filter | 508x610x450 | 1920 | 150 | 12 | >5,3 |
| AC-G-H-16-AC-610-610-450 | AC | Cartridge Filter | 610x610x450 | 2560 | 150 | 16 | >5,3 |
| AC-G-H-4-AC-305-305-600 | AC | Cartridge Filter | 305x305x600 | 850 | 150 | 4 | >7,0 |
| AC-G-H-8-AC-305-610-600 | AC | Cartridge Filter | 305x610x600 | 1700 | 150 | 8 | >7,0 |
| AC-G-H-12-AC-508-610-600 | AC | Cartridge Filter | 508x610x600 | 2760 | 150 | 12 | >7,0 |
| AC-G-H-16-AC-610-610-600 | AC | Cartridge Filter | 610x610x600 | 3400 | 150 | 16 | >7,0 |
