Applications

  • Gas-phase filtration
  • Offices
  • Hospitals
  • Airports

Highlights

  • Remove volatile organic compounds (VOC’s)
  • Odors
  • Compact design
  • Simple installation and handling

Technical Specifications

Media:AC between sythetic layerType:High efficiency, activated carbon
Frame:GalvanizedMedia Weight:400gsm
Max. Operating Temperature:50°CGasket:Without, EPDM
Relative Humidity50%

Order Code

Filter TypeFrameDimensions
(mm)
Gasket

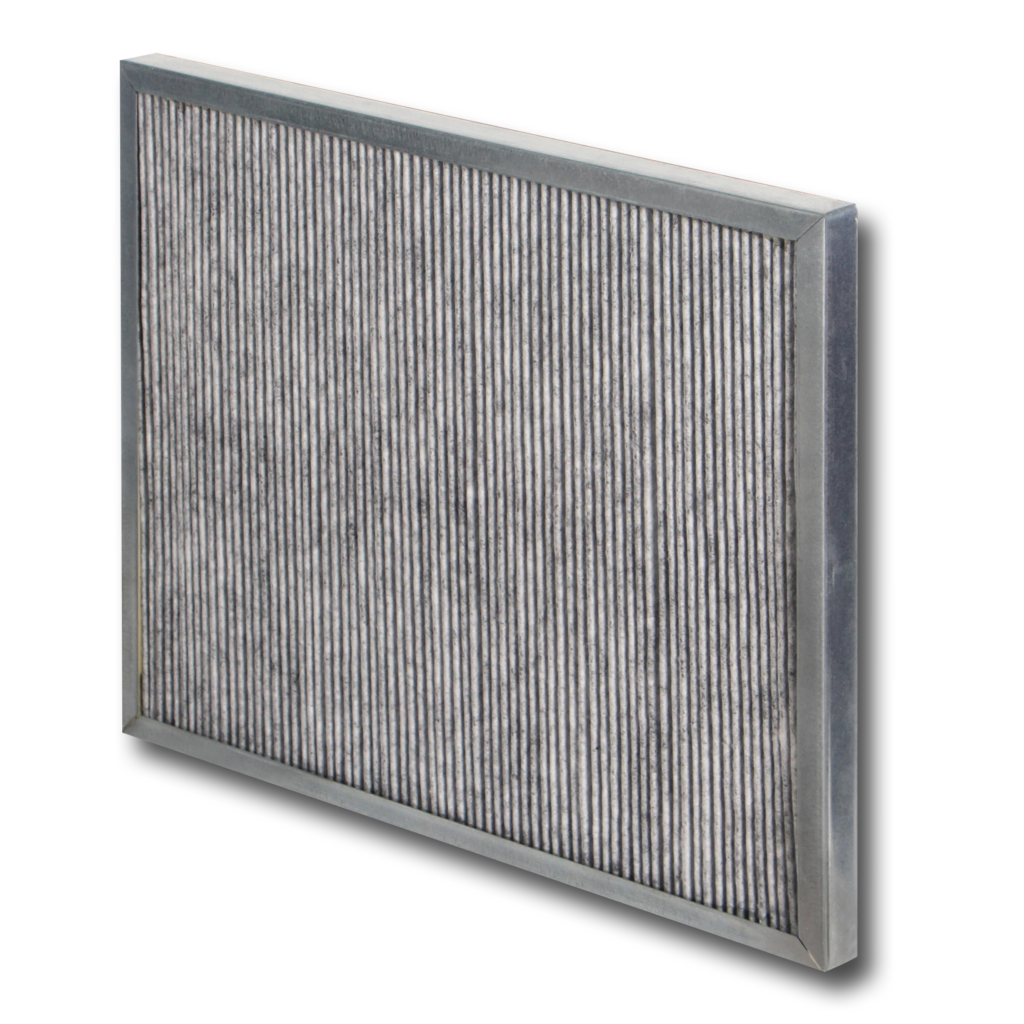

AFP : Activated
Carbon Panel Filter
G: Galvanized Metal592x592x48W: Without
E: EPDM Flat
EE: EPDM Flat on Both Side
C: Continuous Grey EPDM
CC: Grey EPDM on Both Side
Filter ModelFilter ClassDimensions
WxHxD
(mm)
Filtration
Area
(m²)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
AFP-G-287-287-48-WActivated Carbon287x287x481,037580
AFP-G-287-592-48-WActivated Carbon287x592x482,075080
AFP-G-592-592-48-WActivated Carbon592x592x484150080
