Applications

  • Capturing fine particles
  • Second or final stage filter in HVAC
  • Pre-filter for HEPA filters

Highlights

  • Eurovent certified
  • Large filtration area
  • Simple and light weight
  • High dust holding capacity
  • Low initial pressure drop

Technical Specifications

Filter Standard: ISO16890Standard depth:48 - 96 mm
Filter Class:ISO ePM1 - ISO ePM10Faceguard:Available on request
Media:Glass FiberGasket:Available on request
Frame:PlasticSealing Compound:Two component polyurethane
Rec. Final Pressure Drop EN13053:Initial ΔP +100 Pa or initial ΔP x3
whichever is lower
Seperators:Hotmelt
Max. Operating Temperature: 80°C

Order Code

Filter TypeFilter
Class
FrameDimensions (mm)FaceguardGasket
FP : Panel Filter
(Plastic Frame)
M6
F7
F8
F9
P : Plastic592x592x48FW: Without
FC: On Clean Side
FD: On Dirty Side
FB: On Both Sides
W: Without
P: Continuous Pu Foam
PP: Pu Foam on Both Sides
E: EPDM
EE: EPDM Flat On Both Sides
C: Continuous Grey EPDM
CC: Grey EPDM on Both Sides

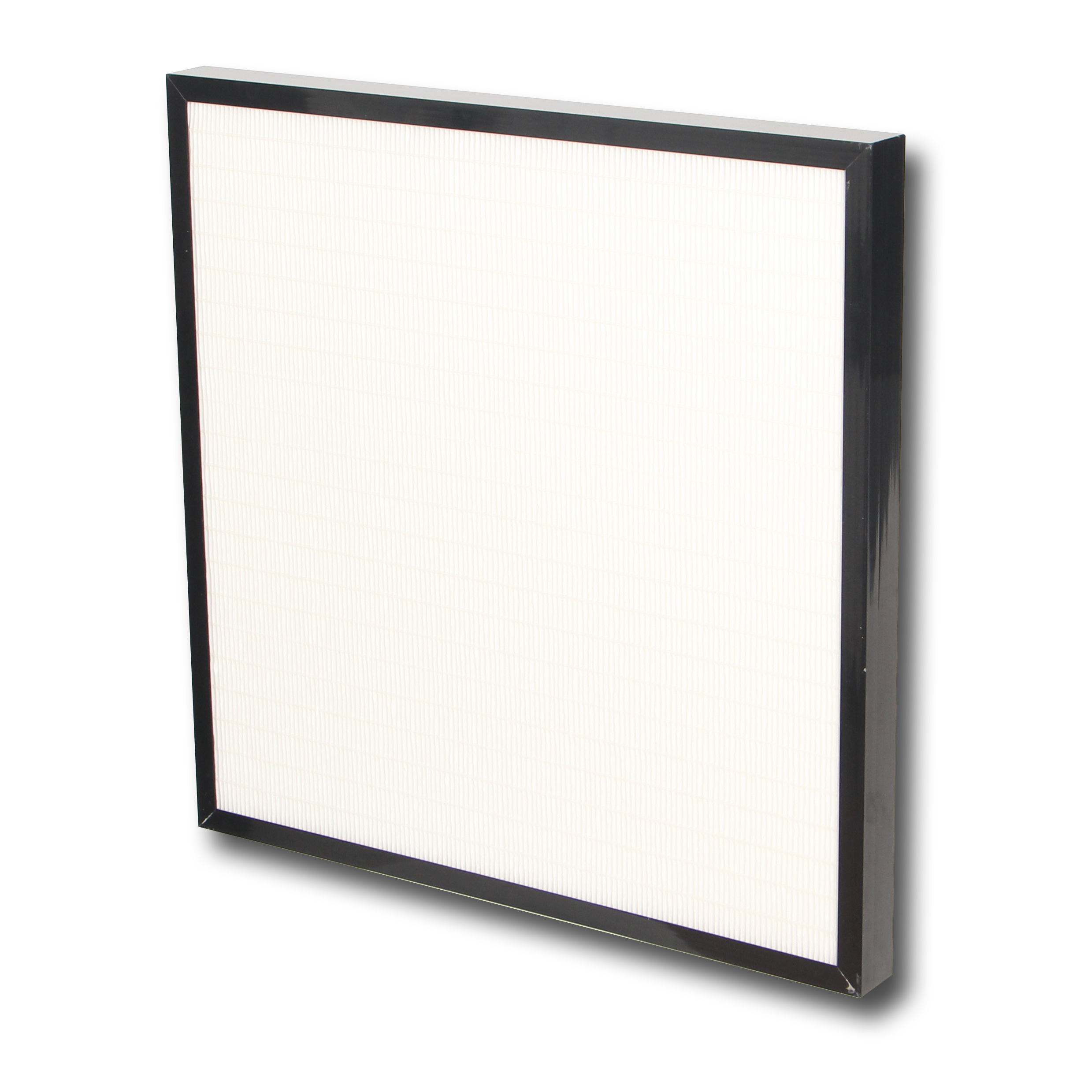

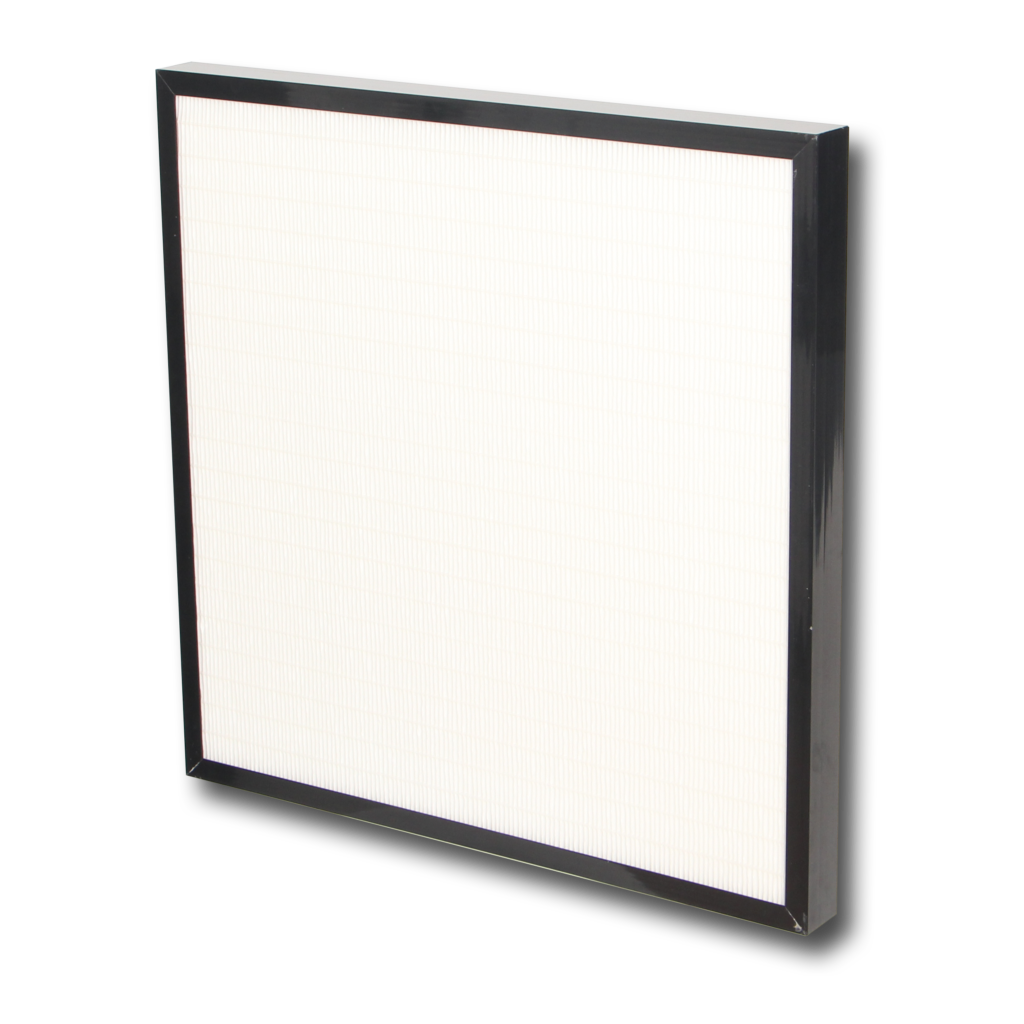

PANEL FILTER (PLASTIC FRAME/P48)

Filter ModelEN 779
(cancelled)
ISO 16890Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
FP-M6-P-287-287-48-FW-WM6ePM10 75%287x287x481.550060
FP-M6-P-287-592-48-FW-WM6ePM10 75%287x592x483100060
FP-M6-P-490-592-48-FW-WM6ePM10 75%490x592x485166060
FP-M6-P-592-592-48-FW-WM6ePM10 75%592x592x486200060
FP-F7-P-287-287-48-FW-WF7ePM1 55%287x287x481.550080
FP-F7-P-287-592-48-FW-WF7ePM1 55%287x592x483100080
FP-F7-P-490-592-48-FW-WF7ePM1 55%490x592x485166080
FP-F7-P-592-592-48-FW-WF7ePM1 55%592x592x486200080
FP-F8-P-287-287-48-FW-WF8ePM1 75%287x287x481.5500100
FP-F8-P-287-592-48-FW-WF8ePM1 75%287x592x4831000100
FP-F8-P-490-592-48-FW-WF8ePM1 75%490x592x4851660100
FP-F8-P-592-592-48-FW-WF8ePM1 75%592x592x4862000100
FP-F9-P-287-287-48-FW-WF9ePM1 85%287x287x481.5500145
FP-F9-P-287-592-48-FW-WF9ePM1 85%287x592x4831000145
FP-F9-P-490-592-48-FW-WF9ePM1 85%490x592x4851660145
FP-F9-P-592-592-48-FW-WF9ePM1 85%592x592x4862000145

“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”

PANEL FILTER (PLASTIC FRAME/P96)

Filter ModelEN 779
(cancelled)
ISO 16890Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
FP-M6-P-287-287-96-FW-WM6ePM10 75%287x287x96375070
FP-M6-P-287-592-96-FW-WM6ePM10 75%287x592x966150070
FP-M6-P-490-592-96-FW-WM6ePM10 75%490x592x9610250070
FP-M6-P-592-592-96-FW-WM6ePM10 75%592x592x9612300070
FP-F7-P-287-287-96-FW-WF7ePM1 55%287x287x96375090
FP-F7-P-287-592-96-FW-WF7ePM1 55%287x592x966150090
FP-F7-P-490-592-96-FW-WF7ePM1 55%490x592x9610250090
FP-F7-P-592-592-96-FW-WF7ePM1 55%592x592x9612300090
FP-F8-P-287-287-96-FW-WF8ePM1 75%287x287x963750110
FP-F8-P-287-592-96-FW-WF8ePM1 75%287x592x9661500110
FP-F8-P-490-592-96-FW-WF8ePM1 75%490x592x96102500110
FP-F8-P-592-592-96-FW-WF8ePM1 75%592x592x96123000110
FP-F9-P-287-287-96-FW-WF9ePM1 85%287x287x963750150
FP-F9-P-287-592-96-FW-WF9ePM1 85%287x592x9661500150
FP-F9-P-490-592-96-FW-WF9ePM1 85%490x592x96102500150
FP-F9-P-592-592-96-FW-WF9ePM1 85%592x592x96123000150

“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
