Applications

  • Final filter for cleanrooms and LAF Units
  • Life science
  • Healthcare
  • Microelectronics
  • Food & Beverages

Highlights

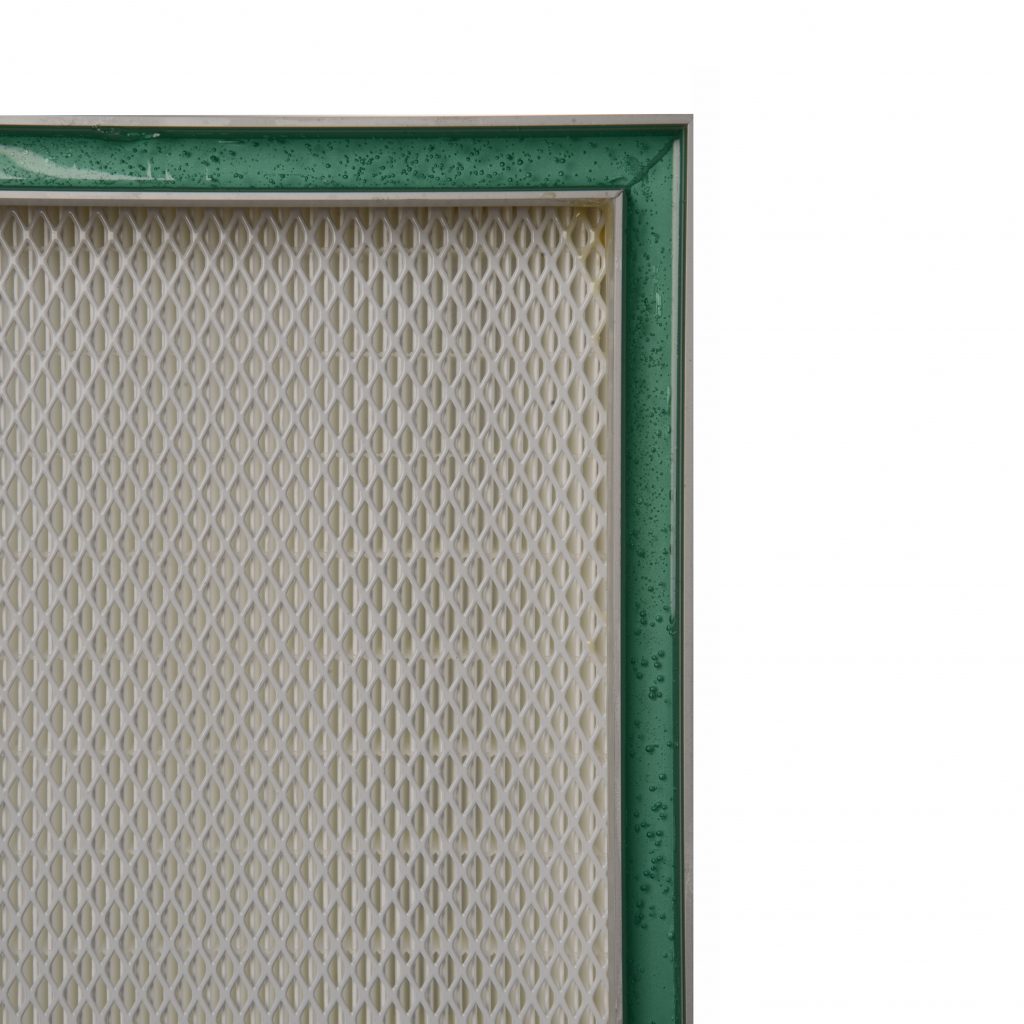

  • High quality fluid gel gasket (self healing)
  • High quality glass fiber media
  • Guarenteed leak free
  • Individiual test certificate (acc. to EN 1822 – ISO 29463)
  • Optimized velocity distribution

Technical Specifications

Filter Standard: EN 1822 and ISO 29463 Max. Operating Tempature:80˚C
Filter Class:H13 - H14Faceguard:Aluminium sheet, powder coated
Media:High quality glass fiberGasket:Gel
Frame:Anodized extruded aluminiumSealing Compound: Two component polyurethane
Rec. Final Pressure Drop:Initial pressure drop x2,
(max. 600 Pa)
Seperator:Hotmelt

Order Code

Filter TypeFilter
Class
FramePleat
Height
DesignDimensions
(mm)
Faceguard Gasket
HC : Gel Type
HEPA Ceiling Filter
H13
H14
A: AluminiumN: 42 mm
J: 55 mm
M: 68 mm
L: 92 mm
X: 115 mm
J: Gel Type610x610x71FB: On Both SidesG: Gel

GEL TYPE HEPA CEILING FILTER / HC ANJ 71

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-N-J-305-305-71-FB-GH13ISO 35 H305x305x712,342150100
HC-H13-A-N-J-305-610-71-FB-GH13ISO 35 H305x610x714,542300100
HC-H13-A-N-J-457-457-71-FB-GH13ISO 35 H457x457x71542340100
HC-H13-A-N-J-610-610-71-FB-GH13ISO 35 H610x610x71942600100
HC-H13-A-N-J-610-915-71-FB-GH13ISO 35 H610x915x7113,542900100
HC-H13-A-N-J-610-1220-71-FB-GH13ISO 35 H610x1220x7118421200100
HC-H13-A-N-J-762-915-71-FB-GH13ISO 35 H762x915x7116,9421130100
HC-H13-A-N-J-915-915-71-FB-GH13ISO 35 H915x915x7120,3421350100
HC-H14-A-N-J-305-305-71-FB-GH14ISO 45 H305x305x712,442150125
HC-H14-A-N-J-305-610-71-FB-GH14ISO 45 H305x610x714,742300125
HC-H14-A-N-J-457-457-71-FB-GH14ISO 45 H457x457x715,342340125
HC-H14-A-N-J-610-610-71-FB-GH14ISO 45 H610x610x719,442600125
HC-H14-A-N-J-610-915-71-FB-GH14ISO 45 H610x915x711442900125
HC-H14-A-N-J-610-1220-71-FB-GH14ISO 45 H610x1220x7118,8421200125
HC-H14-A-N-J-762-915-71-FB-GH14ISO 45 H762x915x7117,6421130125
HC-H14-A-N-J-915-915-71-FB-GH14ISO 45 H915x915x7121,2421350125

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

GEL TYPE HEPA CEILING FILTER / HC ANJ 80

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-N-J-305-305-80-FB-GH13ISO 35 H305x305x802,342150100
HC-H13-A-N-J-305-610-80-FB-GH13ISO 35 H305x610x804,542300100
HC-H13-A-N-J-457-457-80-FB-GH13ISO 35 H457x457x80542340100
HC-H13-A-N-J-610-610-80-FB-GH13ISO 35 H610x610x80942600100
HC-H13-A-N-J-610-915-80-FB-GH13ISO 35 H610x915x8013,542900100
HC-H13-A-N-J-610-1220-80-FB-GH13ISO 35 H610x1220x8018421200100
HC-H13-A-N-J-762-915-80-FB-GH13ISO 35 H762x915x8016,9421130100
HC-H13-A-N-J-915-915-80-FB-GH13ISO 35 H915x915x8020,3421350100
HC-H14-A-N-J-305-305-80-FB-GH14ISO 45 H305x305x802,442150125
HC-H14-A-N-J-305-610-80-FB-GH14ISO 45 H305x610x804,742300125
HC-H14-A-N-J-457-457-80-FB-GH14ISO 45 H457x457x805,342340125
HC-H14-A-N-J-610-610-80-FB-GH14ISO 45 H610x610x809,442600125
HC-H14-A-N-J-610-915-80-FB-GH14ISO 45 H610x915x801442900125
HC-H14-A-N-J-610-1220-80-FB-GH14ISO 45 H610x1220x8018,8421200125
HC-H14-A-N-J-762-915-80-FB-GH14ISO 45 H762x915x8017,6421130125
HC-H14-A-N-J-915-915-80-FB-GH14ISO 45 H915x915x8021,2421350125

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

GEL TYPE HEPA CEILING FILTER / HC AJJ 91

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-J-J-305-305-91-FB-GH13ISO 35 H305x305x912,75515090
HC-H13-A-J-J-305-610-91-FB-GH13ISO 35 H305x610x915,45530090
HC-H13-A-J-J-457-457-91-FB-GH13ISO 35 H457x457x9165534090
HC-H13-A-J-J-610-610-91-FB-GH13ISO 35 H610x610x9110,75560090
HC-H13-A-J-J-610-915-91-FB-GH13ISO 35 H610x915x91165590090
HC-H13-A-J-J-610-1220-91-FB-GH13ISO 35 H610x1220x9121,455120090
HC-H13-A-J-J-762-915-91-FB-GH13ISO 35 H762x915x912055113090
HC-H13-A-J-J-915-915-91-FB-GH13ISO 35 H915x915x912455135090
HC-H14-A-J-J-305-305-91-FB-GH14ISO 45 H305x305x912,855150115
HC-H14-A-J-J-305-610-91-FB-GH14ISO 45 H305x610x915,755300115
HC-H14-A-J-J-457-457-91-FB-GH14ISO 45 H457x457x916,355340115
HC-H14-A-J-J-610-610-91-FB-GH14ISO 45 H610x610x9111,355600115
HC-H14-A-J-J-610-915-91-FB-GH14ISO 45 H610x915x911755900115
HC-H14-A-J-J-610-1220-91-FB-GH14ISO 45 H610x1220x9122,6551200115
HC-H14-A-J-J-762-915-91-FB-GH14ISO 45 H762x915x9121,6551130115
HC-H14-A-J-J-915-915-91-FB-GH14ISO 45 H915x915x9125,5551350115

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

GEL TYPE HEPA CEILING FILTER / HC AMJ 104

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-M-J-305-305-104-FB-GH13ISO 35 H305x305x10436815085
HC-H13-A-M-J-305-610-104-FB-GH13ISO 35 H305x610x1046,26830085
HC-H13-A-M-J-457-457-104-FB-GH13ISO 35 H457x457x10476834085
HC-H13-A-M-J-610-610-104-FB-GH13ISO 35 H610x610x10412,46860085
HC-H13-A-M-J-610-915-104-FB-GH13ISO 35 H610x915x10418,66890085
HC-H13-A-M-J-610-1220-104-FB-GH13ISO 35 H610x1220x10424,968120085
HC-H13-A-M-J-762-915-104-FB-GH13ISO 35 H762x915x10423,368113085
HC-H13-A-M-J-915-915-104-FB-GH13ISO 35 H915x915x1042868135085
HC-H14-A-M-J-305-305-104-FB-GH14ISO 45 H305x305x1043,368150100
HC-H14-A-M-J-305-610-104-FB-GH14ISO 45 H305x610x1046,568300100
HC-H14-A-M-J-457-457-104-FB-GH14ISO 45 H457x457x1047,468340100
HC-H14-A-M-J-610-610-104-FB-GH14ISO 45 H610x610x1041368600100
HC-H14-A-M-J-610-915-104-FB-GH14ISO 45 H610x915x10419,668900100
HC-H14-A-M-J-610-1220-104-FB-GH14ISO 45 H610x1220x10426,2681200100
HC-H14-A-M-J-762-915-104-FB-GH14ISO 45 H762x915x10424,5681130100
HC-H14-A-M-J-915-915-104-FB-GH14ISO 45 H915x915x10429,5681350100

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

GEL TYPE HEPA CEILING FILTER / HC ALJ 128

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-L-J-305-305-128-FB-GH13ISO 35 H305x305x1284,59215065
HC-H13-A-L-J-305-610-128-FB-GH13ISO 35 H305x610x12899230065
HC-H13-A-L-J-457-457-128-FB-GH13ISO 35 H457x457x128109234065
HC-H13-A-L-J-610-610-128-FB-GH13ISO 35 H610x610x128189260065
HC-H13-A-L-J-610-915-128-FB-GH13ISO 35 H610x915x128279290065
HC-H13-A-L-J-610-1220-128-FB-GH13ISO 35 H610x1220x1283692120065
HC-H13-A-L-J-762-915-128-FB-GH13ISO 35 H762x915x12833,492113065
HC-H13-A-L-J-915-915-128-FB-GH13ISO 35 H915x915x12840,592135065
HC-H14-A-L-J-305-305-128-FB-GH14ISO 45 H305x305x1284,79215080
HC-H14-A-L-J-305-610-128-FB-GH14ISO 45 H305x610x1289,49230080
HC-H14-A-L-J-457-457-128-FB-GH14ISO 45 H457x457x12810,59234080
HC-H14-A-L-J-610-610-128-FB-GH14ISO 45 H610x610x12818,89260080
HC-H14-A-L-J-610-915-128-FB-GH14ISO 45 H610x915x12828,29290080
HC-H14-A-L-J-610-1220-128-FB-GH14ISO 45 H610x1220x12837,692120080
HC-H14-A-L-J-762-915-128-FB-GH14ISO 45 H762x915x12835,292113080
HC-H14-A-L-J-915-915-128-FB-GH14ISO 45 H915x915x12842,392135080

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”

GEL TYPE HEPA CEILING FILTER / HC AXJ 150

Filter ModelEN 1822ISO 29463Dimensions
WxHxD
(mm)
Filtration
Area
(m²)
Pleat
Height
(mm)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
HC-H13-A-X-J-305-305-150-FB-GH13ISO 35 H305x305x1505,611515055
HC-H13-A-X-J-305-610-150-FB-GH13ISO 35 H305x610x15011,311530055
HC-H13-A-X-J-457-457-150-FB-GH13ISO 35 H457x457x15012,611534055
HC-H13-A-X-J-610-610-150-FB-GH13ISO 35 H610x610x15022,511560055
HC-H13-A-X-J-610-915-150-FB-GH13ISO 35 H610x915x15033,811590055
HC-H13-A-X-J-610-1220-150-FB-GH13ISO 35 H610x1220x15045115120055
HC-H14-A-X-J-305-305-150-FB-GH14ISO 45 H305x305x1505,911515070
HC-H14-A-X-J-305-610-150-FB-GH14ISO 45 H305x610x15011,811530070
HC-H14-A-X-J-457-457-150-FB-GH14ISO 45 H457x457x15013,211534070
HC-H14-A-X-J-610-610-150-FB-GH14ISO 45 H610x610x15023,511560070
HC-H14-A-X-J-610-915-150-FB-GH14ISO 45 H610x915x15035,311590070
HC-H14-A-X-J-610-1220-150-FB-GH14ISO 45 H610x1220x15047115120070

“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”
