Applications
- Final filter for cleanrooms and LF Units
- Life science
- Healthcare
- Microelectronics
- Food & Beverages
Highlights
- Additional stainless steel L profile on flange
- High quality fluid gel gasket (self healing)
- High quality glass fiber media
- Guarenteed leak free
- Individiual test certificate (acc. to EN 1822 – ISO 29463)
- Optimized velocity distribution
Technical Specifications
| Filter Standard: | EN 1822 and ISO 29463 | Max. Operating Tempature: | 80˚C | |
| Filter Class: | H13 - H14 | Faceguard: | Aluminium sheet (powder coated) | |
| Media: | High quality glass fiber | Gasket: | Gel | |
| Frame: | Anodized extruded aluminium | Sealing Compound: | Two component polyurethane | |
| Rec. Final Pressure Drop: | Initial pressure drop x2, (max. 600 Pa) | Seperator: | Hotmelt |
Order Code
| Filter Type | Filter Class | Frame | Pleat Height | Design | Dimensions (mm) | Faceguard | Gasket |
|---|---|---|---|---|---|---|---|

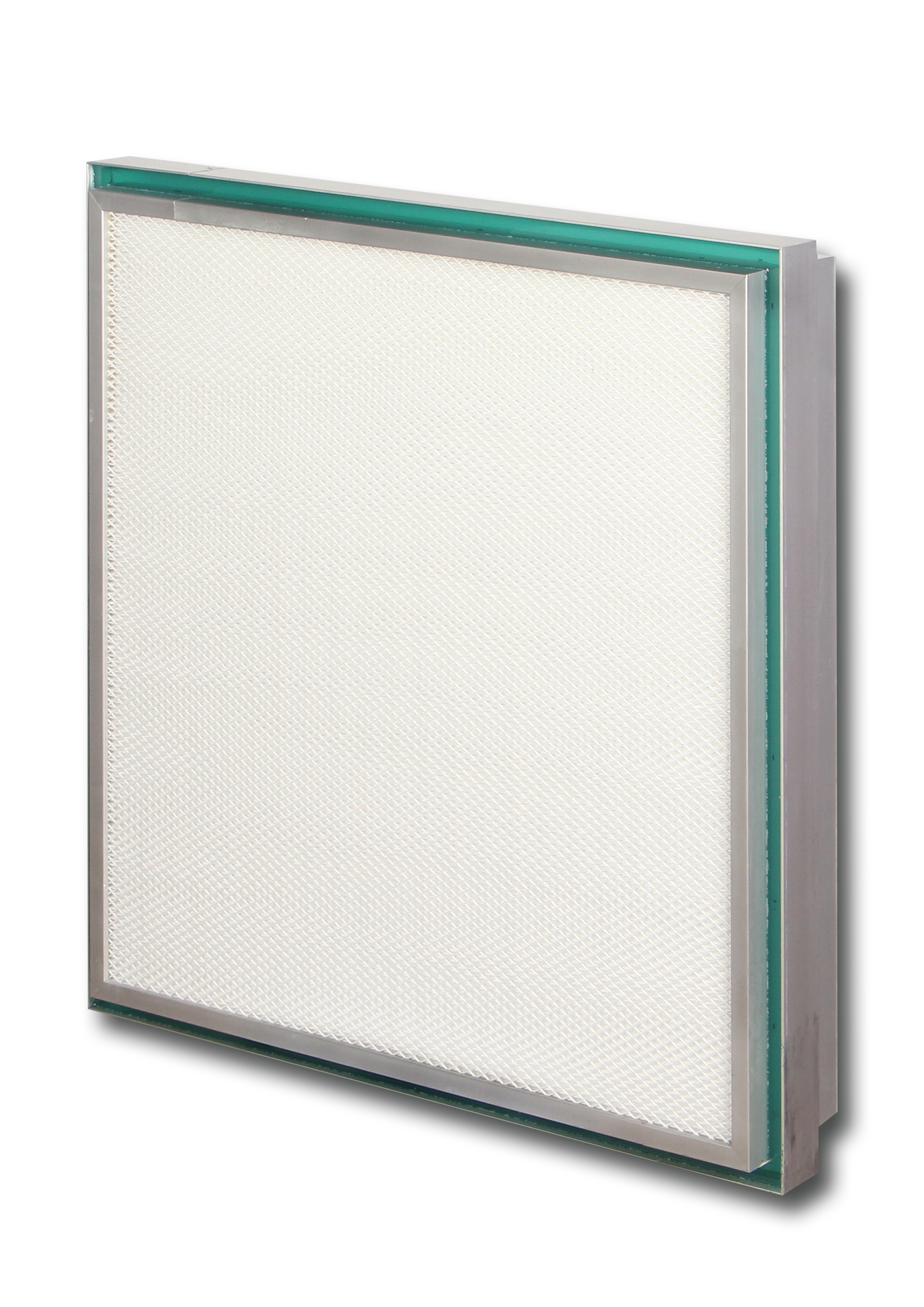

| HC : Gel Type HEPA Ceiling Filter with Flange | H13 H14 | A: Aluminium | 2 : 65 | Gel Type with Flange | 644x644x91 (90+1) | FW: Without FC: On Clean Side FD: On Dirty Side FB: On Both Sides | G: Gel |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ±10%”
“Net filter dimensions without flange is less than 34 mm from width and length ”
“It’s possible to manufacture at various depths (56,67,70,79,101,111,118,126,151mm) using the stainless adaptive L profile applied to the HEPA Ceiling Filter aluminum profiles.”
| Filter Model | EN 1822 | ISO 29463 | Dimensions WxHxD (mm) | Filtration Area (m²) | Pleat Height (mm) | Nominal Airflow (m³/h) | Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|---|
| HC-H14-A-2-FJ-339-644-91-FB-G | H14 | ISO 45 H | 339x644x91 | 6 | 65 | 300 | 110 |
| HC-H14-A-2-FJ-491-491-91-FB-G | H14 | ISO 45 H | 491x491x91 | 6,9 | 65 | 340 | 110 |
| HC-H14-A-2-FJ-644-644-91-FB-G | H14 | ISO 45 H | 644x644x91 | 12,2 | 65 | 600 | 110 |
