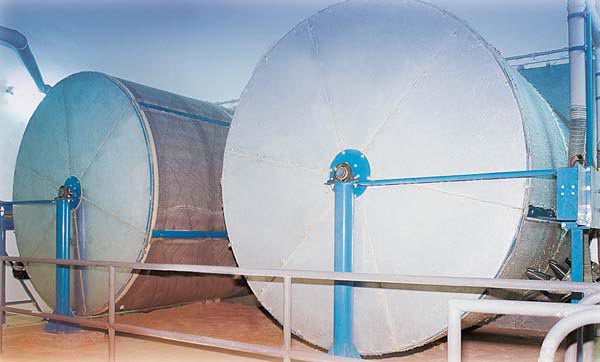

The turntable of the rotary filter is formed by assembling the cylinders of the modules made of perforated sheet and special twisted profiles. The rotary filter is suported in two miller and two closed industrial type bearings. Supports are fastened on steel contoured stands and the entire filter including the body is painted with electrostatic paint.
We are producing 4 diameters as 1500 mm, 2000 mm, 2500 mm and 3000 mm. We have modules 1700 mm in length for each diameter
Specifications
- Automatic traveling suction nozzles
- High pressure suction fan
- Modular design
- Automatic control depending on differential pressure or time-delay
- Separate drive system for drum and traveler
- Powder coated painting
