Applications
- Capturing fine particles
- Second or final stage filter in HVAC
- Pre-filter for HEPA filters
Highlights
- Middle support prevents bypass between filter pockets
- Any special dimensions
Technical Specifications
| Filter Standard: | EN 779 | Rec. Final Pressure Drop EN13053: | Initial ΔP +100 Pa or initial ΔP x3 whichever is lower |
|
| Filter Class: | M5, M6, F7, F8, F9 | Max. Operating Temperature: | 80°C | |
| Media: | Synthetic Fiber | Frame depth: | 20 - 25 mm | |
| Frame: | Galvanized |
Order Code
| Filter Type | Filter Class |
Pocket Number | Flange | Dimensions (mm) |
|---|---|---|---|---|

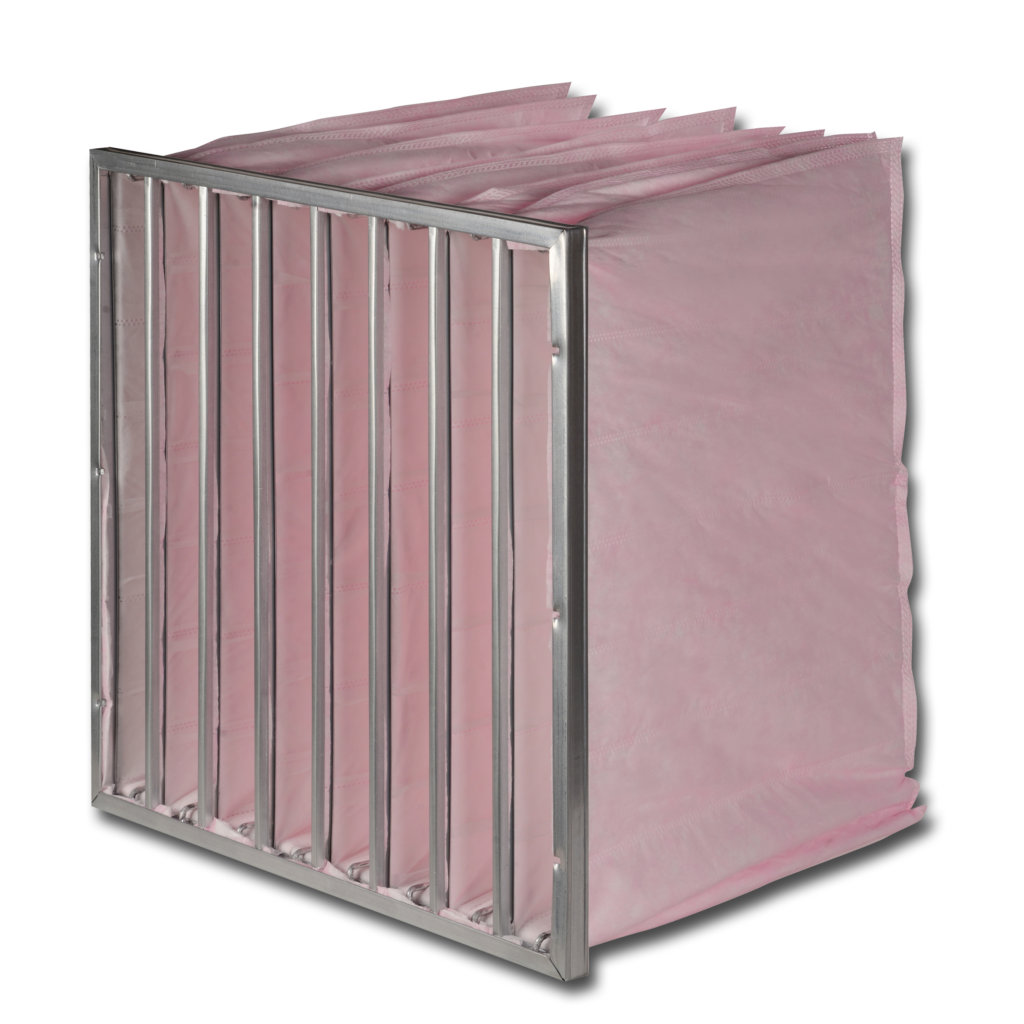

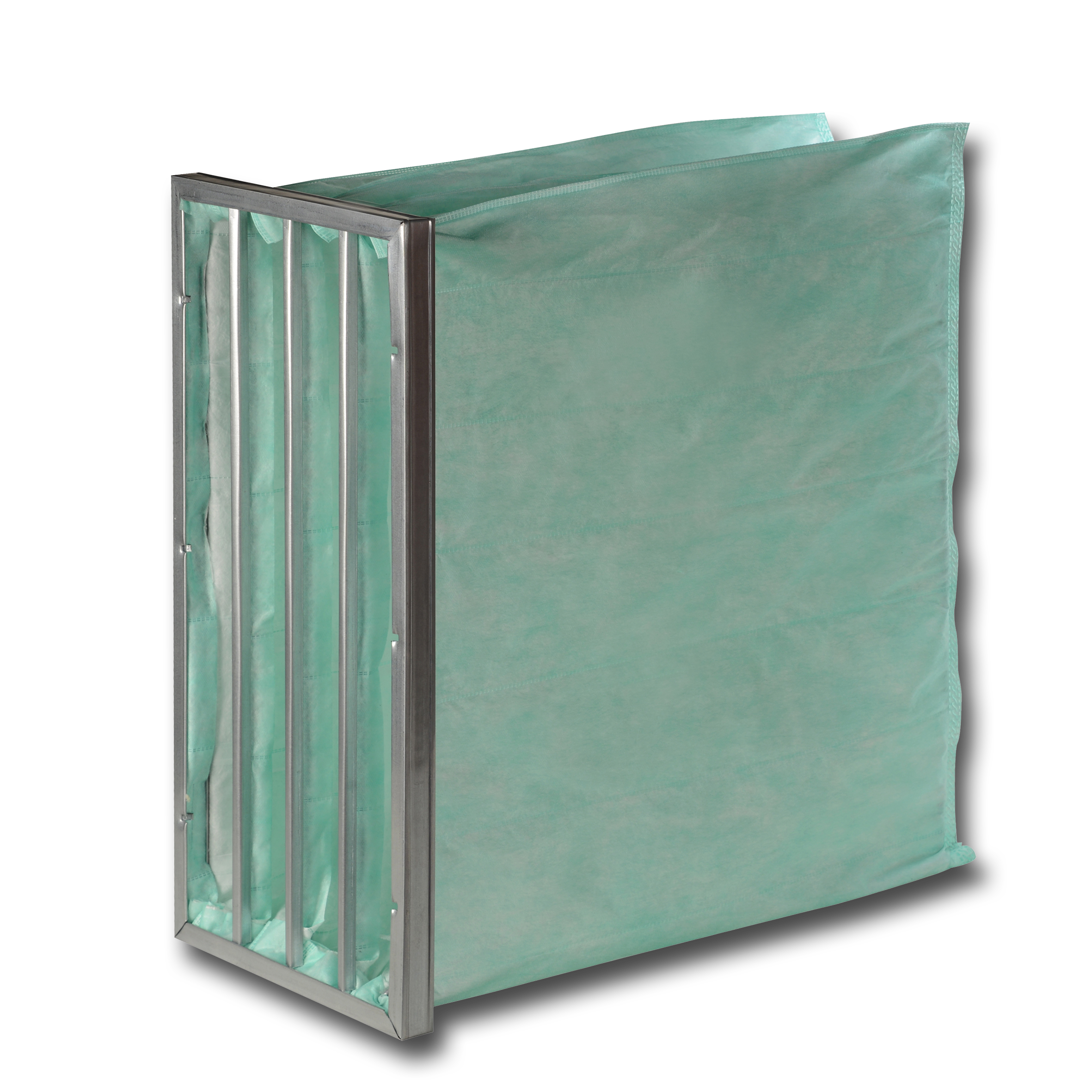

| FB : Synthetic 20, 25 Bag Filter |
M5 M6 F7 F8 F9 |
P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 |
20, 25 | 592x592x360 |
| Filter Model | EN 779 | Dimensions WxHxD (mm) |
Pocket Number |
Filtration Area (m²) |
|---|---|---|---|---|
| FB-M5-P3-25-287-592-360 | M5 | 287x592x360 | 3 | 1.5 |
| FB-M5-P4-25-287-592-360 | M5 | 287x592x360 | 4 | 2 |
| FB-M5-P5-25-490-592-360 | M5 | 490x592x360 | 5 | 2.5 |
| FB-M5-P6-25-592-592-360 | M5 | 592x592x360 | 6 | 3 |
| FB-M5-P8-25-592-592-360 | M5 | 592x592x360 | 8 | 4 |
| FB-M5-P3-25-287-592-500 | M5 | 287x592x500 | 3 | 2 |
| FB-M5-P4-25-287-592-500 | M5 | 287x592x500 | 4 | 2.7 |
| FB-M5-P5-25-490-592-500 | M5 | 490x592x500 | 5 | 3.4 |
| FB-M5-P6-25-592-592-500 | M5 | 592x592x500 | 6 | 4 |
| FB-M5-P8-25-592-592-500 | M5 | 592x592x500 | 8 | 5.5 |
| FB-M5-P3-25-287-592-600 | M5 | 287x592x600 | 3 | 2.4 |
| FB-M5-P4-25-287-592-600 | M5 | 287x592x600 | 4 | 3.2 |
| FB-M5-P5-25-490-592-600 | M5 | 490x592x600 | 5 | 4 |
| FB-M5-P6-25-592-592-600 | M5 | 592x592x600 | 6 | 4.8 |
| FB-M5-P8-25-592-592-600 | M5 | 592x592x600 | 8 | 6.4 |
| FB-M6-P3-25-287-592-360 | M6 | 287x592x360 | 3 | 1.5 |
| FB-M6-P4-25-287-592-360 | M6 | 287x592x360 | 4 | 2 |
| FB-M6-P5-25-490-592-360 | M6 | 490x592x360 | 5 | 2.5 |
| FB-M6-P6-25-592-592-360 | M6 | 592x592x360 | 6 | 3 |
| FB-M6-P8-25-592-592-360 | M6 | 592x592x360 | 8 | 4 |
| FB-M6-P3-25-287-592-500 | M6 | 287x592x500 | 3 | 2 |
| FB-M6-P4-25-287-592-500 | M6 | 287x592x500 | 4 | 2.7 |
| FB-M6-P5-25-490-592-500 | M6 | 490x592x500 | 5 | 3.4 |
| FB-M6-P6-25-592-592-500 | M6 | 592x592x500 | 6 | 4 |
| FB-M6-P8-25-592-592-500 | M6 | 592x592x500 | 8 | 5.5 |
| FB-M6-P3-25-287-592-600 | M6 | 287x592x600 | 3 | 2.4 |
| FB-M6-P4-25-287-592-600 | M6 | 287x592x600 | 4 | 3.2 |
| FB-M6-P5-25-490-592-600 | M6 | 490x592x600 | 5 | 4 |
| FB-M6-P6-25-592-592-600 | M6 | 592x592x600 | 6 | 4.8 |
| FB-M6-P8-25-592-592-600 | M6 | 592x592x600 | 8 | 6.4 |
| Filter Model | EN 779 | Dimensions WxHxD (mm) |
Pocket Number |
Filtration Area (m²) |
|---|---|---|---|---|
| FB-F7-P4-25-287-592-360 | F7 | 287x592x360 | 4 | 2 |
| FB-F7-P6-25-490-592-360 | F7 | 490x592x360 | 6 | 3 |
| FB-F7-P8-25-592-592-360 | F7 | 592x592x360 | 8 | 4 |
| FB-F7-P4-25-287-592-500 | F7 | 287x592x500 | 4 | 2.7 |
| FB-F7-P6-25-490-592-500 | F7 | 490x592x500 | 6 | 4 |
| FB-F7-P8-25-592-592-500 | F7 | 592x592x500 | 8 | 5.5 |
| FB-F7-P4-25-287-592-600 | F7 | 287x592x600 | 4 | 3.2 |
| FB-F7-P6-25-490-592-600 | F7 | 490x592x600 | 6 | 4.8 |
| FB-F7-P8-25-592-592-600 | F7 | 592x592x600 | 8 | 6.4 |
| FB-F8-P4-25-287-592-360 | F8 | 287x592x360 | 4 | 2 |
| FB-F8-P6-25-490-592-360 | F8 | 490x592x360 | 6 | 3 |
| FB-F8-P8-25-592-592-360 | F8 | 592x592x360 | 8 | 4 |
| FB-F8-P4-25-287-592-500 | F8 | 287x592x500 | 4 | 2.7 |
| FB-F8-P6-25-490-592-500 | F8 | 490x592x500 | 6 | 4 |
| FB-F8-P8-25-592-592-500 | F8 | 592x592x500 | 8 | 5.5 |
| FB-F8-P4-25-287-592-600 | F8 | 287x592x600 | 4 | 3.2 |
| FB-F8-P6-25-490-592-600 | F8 | 490x592x600 | 6 | 4.8 |
| FB-F8-P8-25-592-592-600 | F8 | 592x592x600 | 8 | 6.4 |
| FB-F9-P4-25-287-592-360 | F9 | 287x592x360 | 4 | 2 |
| FB-F9-P6-25-490-592-360 | F9 | 490x592x360 | 6 | 3 |
| FB-F9-P8-25-592-592-360 | F9 | 592x592x360 | 8 | 4 |
| FB-F9-P4-25-287-592-500 | F9 | 287x592x500 | 4 | 2.7 |
| FB-F9-P6-25-490-592-500 | F9 | 490x592x500 | 6 | 4 |
| FB-F9-P8-25-592-592-500 | F9 | 592x592x500 | 8 | 5.5 |
| FB-F9-P4-25-287-592-600 | F9 | 287x592x600 | 4 | 3.2 |
| FB-F9-P6-25-490-592-600 | F9 | 490x592x600 | 6 | 4.8 |
| FB-F9-P8-25-592-592-600 | F9 | 592x592x600 | 8 | 6.4 |
