Applications
- Capturing fine particles
- Second or final stage filter in HVAC
- Pre-filter for HEPA filters
Highlights
- Eurovent certified
- Large filtration area
- Simple and light weight
- High dust holding capacity
- Low initial pressure drop
Technical Specifications
| Filter Standard: | ISO 16890 | Max. Operating Tempature: | 80˚C | |
| Filter Class: | ISO ePM1 - ISO ePM2,5 - ISO ePM10 | Depth: | 100 and 130 mm | |
| Media: | Glass Fiber | Faceguard: | Available on request | |
| Frame: | Anodized extruded aluminium | Sealing Compound: | Two component polyurethane | |
| Rec. Final Pressure Drop EN13053: | Initial ΔP +100 Pa or initial ΔP x3 whichever is lower |
Seperators: | Hotmelt |

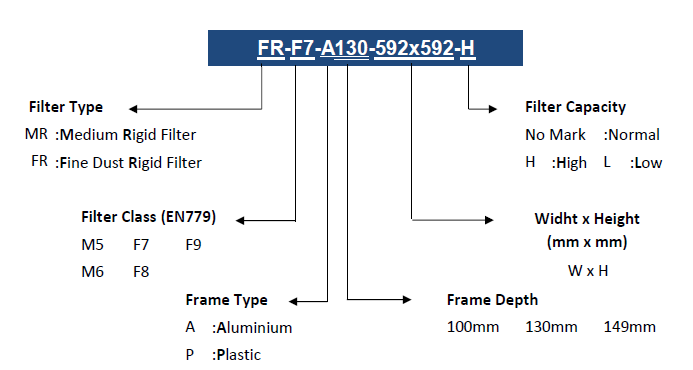

Order Code
| Filter Type | Filter Class | Frame | Capacity | Flange | Dimensions (mm) | Faceguard | Gasket |
|---|---|---|---|---|---|---|---|
| FR :Rigid Filter | M6 F7 F8 F9 |
A : Aluminium | M : Standard H : High |
20 25 |
592x592x130 | FW: Without FC: On Clean Side FD: On Dirty Side FB: On Both Sides |
W: Without E: EPDM EE: EPDM Flat On Both Sides |
RIGID FILTER (ALUMINIUM FRAME/A100)
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Dimensions WxHxD (mm) |
Filtration Area (m²) |
Nominal Airflow (m³/h) |
Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|
| FR-M6-A-M-25-287-287-100-FW-W | M6 | ePM10 70% | 287x287x100 | 2,5 | 750 | 100 |
| FR-M6-A-M-25-287-592-100-FW-W | M6 | ePM10 70% | 287x592x100 | 5 | 1500 | 100 |
| FR-M6-A-M-25-490-592-100-FW-W | M6 | ePM10 70% | 490x592x100 | 8,3 | 2500 | 100 |
| FR-M6-A-M-25-592-592-100-FW-W | M6 | ePM10 70% | 592x592x100 | 10 | 3000 | 100 |
| FR-F7-A-M-25-287-287-100-FW-W | F7 | ePM1 55% | 287x287x100 | 2,5 | 750 | 125 |
| FR-F7-A-M-25-287-592-100-FW-W | F7 | ePM1 55% | 287x592x100 | 5 | 1500 | 125 |
| FR-F7-A-M-25-490-592-100-FW-W | F7 | ePM1 55% | 490x592x100 | 8,3 | 2500 | 125 |
| FR-F7-A-M-25-592-592-100-FW-W | F7 | ePM1 55% | 592x592x100 | 10 | 3000 | 125 |
| FR-F8-A-M-25-287-287-100-FW-W | F8 | ePM1 65% | 287x287x100 | 2,5 | 750 | 150 |
| FR-F8-A- M-25-287-592-100-FW-W | F8 | ePM1 65% | 287x592x100 | 5 | 1500 | 150 |
| FR-F8-A- M-25-490-592-100-FW-W | F8 | ePM1 65% | 490x592x100 | 8,3 | 2500 | 150 |
| FR-F8-A- M-25-592-592-100-FW-W | F8 | ePM1 65% | 592x592x100 | 10 | 3000 | 150 |
| FR-F9-A- M-25-287-287-100-FW-W | F9 | ePM1 85% | 287x287x100 | 2,5 | 750 | 170 |
| FR-F9-A- M-25-287-592-100-FW-W | F9 | ePM1 85% | 287x592x100 | 5 | 1500 | 170 |
| FR-F9-A- M-25-490-592-100-FW-W | F9 | ePM1 85% | 490x592x100 | 8,3 | 2500 | 170 |
| FR-F9-A- M-25-592-592-100-FW-W | F9 | ePM1 85% | 592x592x100 | 10 | 3000 | 170 |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
A-RIGID FILTER (ALUMINIUM FRAME/A130)
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Dimensions WxHxD (mm) |
Filtration Area (m²) |
Nominal Airflow (m³/h) |
Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|
| FR-M6-A-H-25-287-287-130-FW-W | M6 | ePM10 75% | 287x287x130 | 3,2 | 750 | 90 |
| FR-M6-A-H-25-287-592-130-FW-W | M6 | ePM10 75% | 287x592x130 | 6,5 | 1500 | 90 |
| FR-M6-A-H-25-490-592-130-FW-W | M6 | ePM10 75% | 490x592x130 | 10,7 | 2500 | 90 |
| FR-M6-A-H-25-592-592-130-FW-W | M6 | ePM10 75% | 592x592x130 | 13 | 3000 | 90 |
| FR-F7-A-H-25-287-287-130-FW-W | F7 | ePM1 55% | 287x287x130 | 3,2 | 750 | 110 |
| FR-F7-A-H-25-287-592-130-FW-W | F7 | ePM1 55% | 287x592x130 | 6,5 | 1500 | 110 |
| FR-F7-A-H-25-490-592-130-FW-W | F7 | ePM1 55% | 490x592x130 | 10,7 | 2500 | 110 |
| FR-F7-A-H-25-592-592-130-FW-W | F7 | ePM1 55% | 592x592x130 | 13 | 3000 | 110 |
| FR-F8-A-H-25-287-287-130-FW-W | F8 | ePM1 75% | 287x287x130 | 3,2 | 750 | 140 |
| FR-F8-A-H-25-287-592-130-FW-W | F8 | ePM1 75% | 287x592x130 | 6,5 | 1500 | 140 |
| FR-F8-A-H-25-490-592-130-FW-W | F8 | ePM1 75% | 490x592x130 | 10,7 | 2500 | 140 |
| FR-F8-A-H-25-592-592-130-FW-W | F8 | ePM1 75% | 592x592x130 | 13 | 3000 | 140 |
| FR-F9-A-H-25-287-287-130-FW-W | F9 | ePM1 85% | 287x287x130 | 3,2 | 750 | 160 |
| FR-F9-A-H-25-287-592-130-FW-W | F9 | ePM1 85% | 287x592x130 | 6,5 | 1500 | 160 |
| FR-F9-A-H-25-490-592-130-FW-W | F9 | ePM1 85% | 490x592x130 | 10,7 | 2500 | 160 |
| FR-F9-A-H-25-592-592-130-FW-W | F9 | ePM1 85% | 592x592x130 | 13 | 3000 | 160 |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
