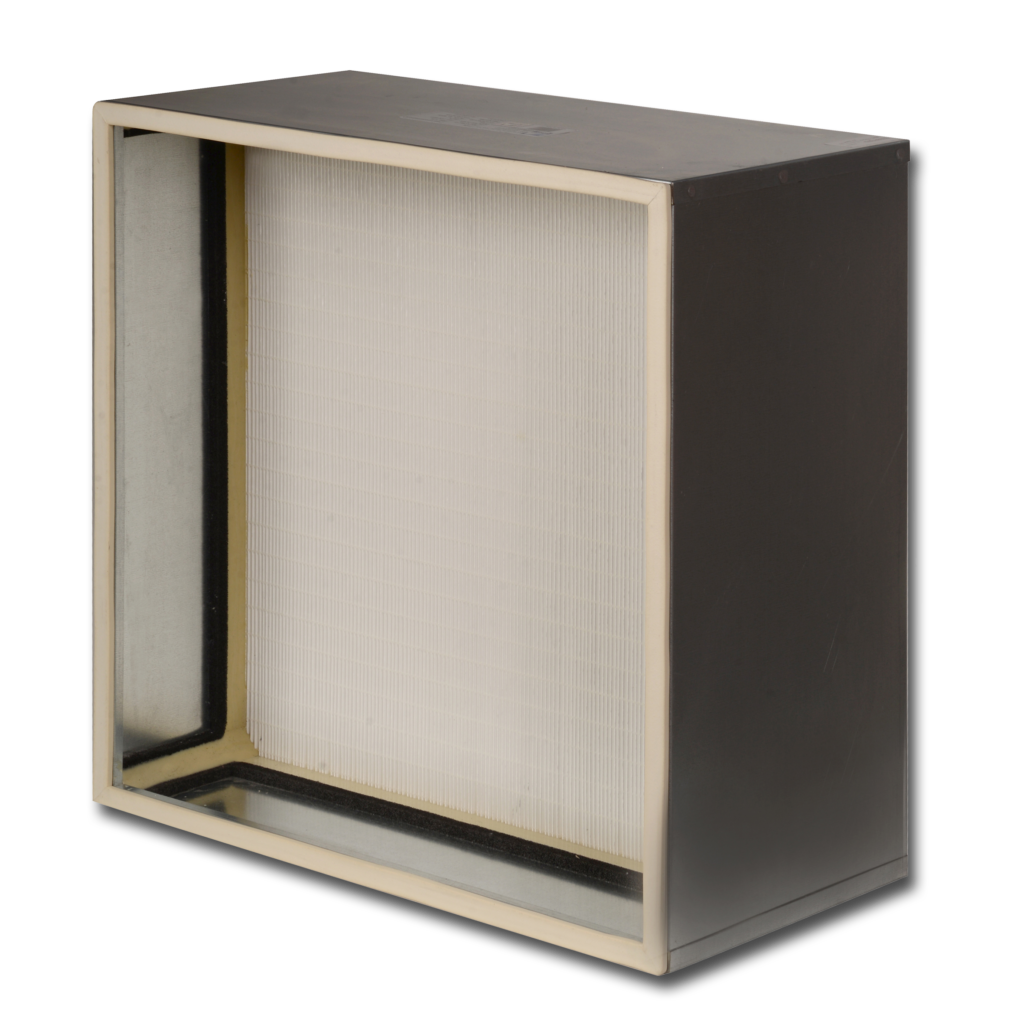

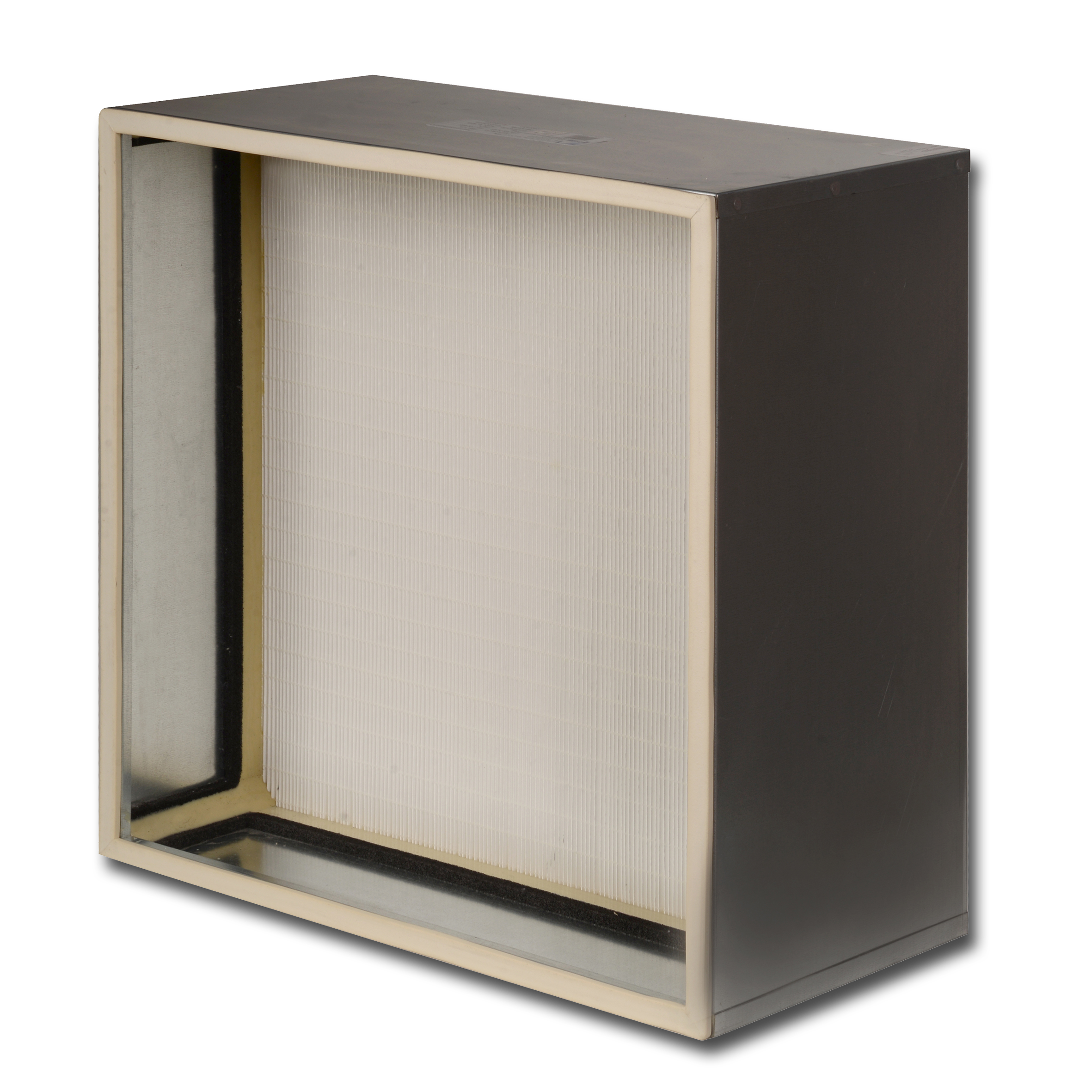

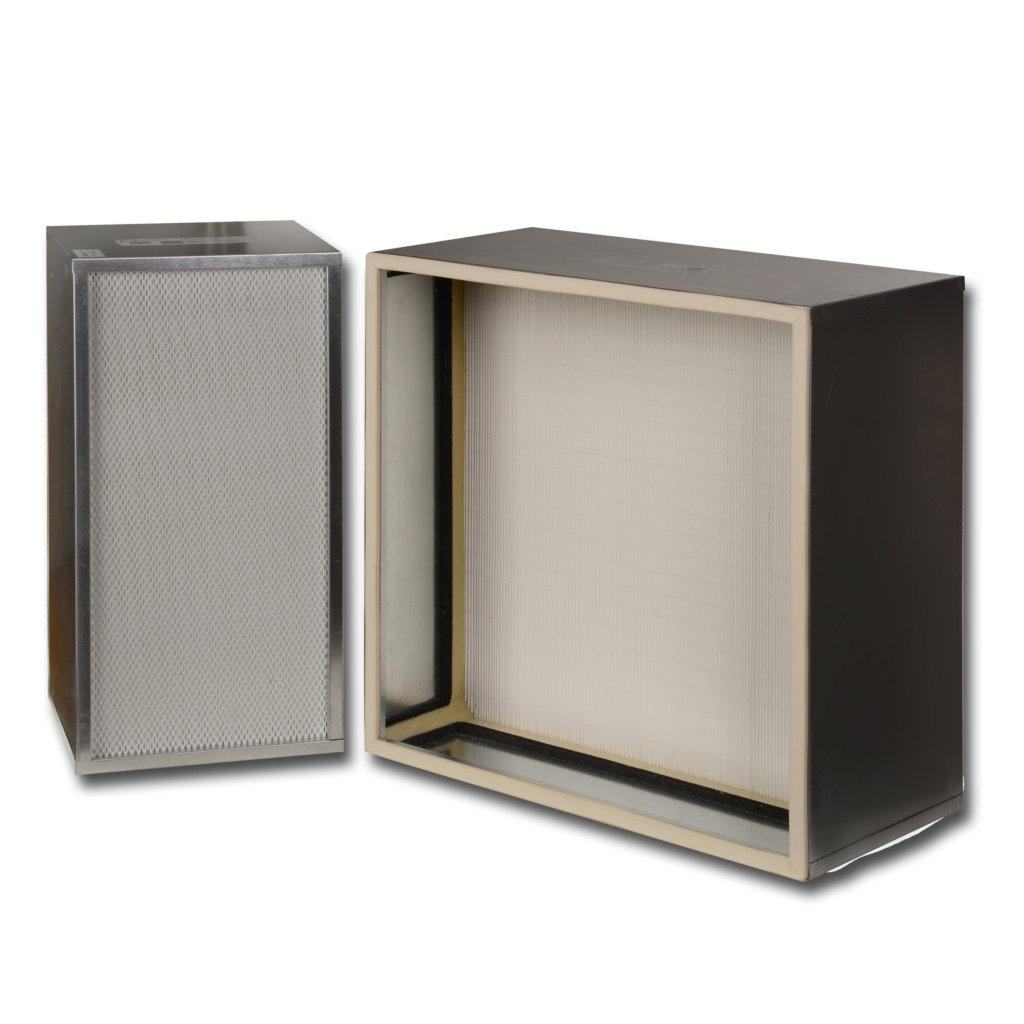

Applications
- Supply and exhaust air HVAC with high airflow rates
Highlights
- Airflow up to 4000m³/h for 610x610x292mm
- Large filtration area
- High dust holding capacity
- Low initial pressure drop
Technical Specifications
| Filter Standard: | ISO 16890 | Max. Operating Tempature: | 80˚C | |
| Filter Class: | ISO ePM1 - ISO ePM2,5 - ISO ePM10 | Gasket: | EPDM EPDM Flat continuous and PU Foam |
|
| Media: | Glass fiber | Sealing Compound: | Polyurethane | |
| Frame: | Galvanized, Stainless Steel, Aluminium |
Seperators: | Hotmelt | |
| Rec. Final Pressure Drop EN13053: | Initial ΔP +100 Pa or initial ΔP x3 whichever is lower |
Order Code
| Filter Type | Filter Class |
Frame | Capacity | Dimensions (mm) |
Faceguard | Gasket |
|---|---|---|---|---|---|---|
| FHS : High Capacity Filter with Single Pleat (Metal) |
M6 F7 F8 F9 |
G: Galvanized A: Aluminium SS: Stainless Steel |
34: 3400 m³/h 40: 4000 m³/h |
610x610x292 | FW: Without FC: On Clean Side FD: On Dirty Side FB: On Both Sides |
W: Without P: Continuous Pu Foam PP: Pu Foam on Both Sides E: EPDM EE: EPDM Flat On Both Sides C: Continuous Grey EPDM CC: Grey EPDM on Both Sides |

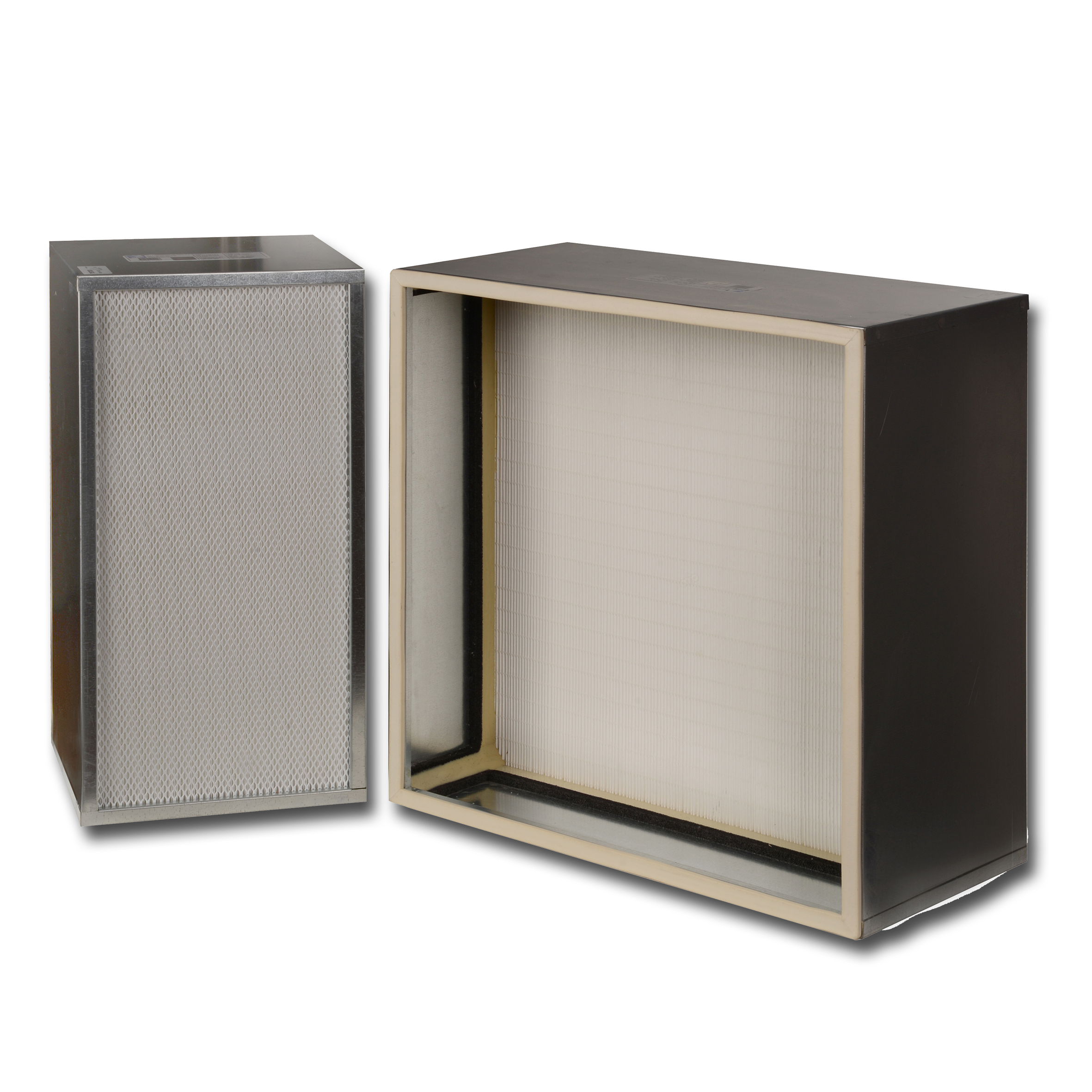

HIGH CAPACITY FILTER WITH SINGLE PLEAT
(METAL FRAME/G34)
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Dimensions WxHxD (mm) |
Filtration Area (m²) |
Nominal Airflow (m³/h) |
Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|
| FHS-M6-G-34-305-305-292 | M6 | ePM10 75% | 305x305x292 | 4 | 850 | 60 |
| FHS-M6-G-34-305-610-292 | M6 | ePM10 75% | 305x610x292 | 8 | 1700 | 60 |
| FHS-M6-G-34-610-610-292 | M6 | ePM10 75% | 610x610x292 | 16 | 3400 | 60 |
| FHS-F7-G-34-305-305-292 | F7 | ePM1 55% | 305x305x292 | 4 | 850 | 80 |
| FHS-F7-G-34-305-610-292 | F7 | ePM1 55% | 305x610x292 | 8 | 1700 | 80 |
| FHS-F7-G-34-610-610-292 | F7 | ePM1 55% | 610x610x292 | 16 | 3400 | 80 |
| FHS-F8-G-34-305-305-292 | F8 | ePM1 70% | 305x305x292 | 4 | 850 | 100 |
| FHS-F8-G-34-305-610-292 | F8 | ePM1 70% | 305x610x292 | 8 | 1700 | 100 |
| FHS-F8-G-34-610-610-292 | F8 | ePM1 70% | 610x610x292 | 16 | 3400 | 100 |
| FHS-F9-G-34-305-305-292 | F9 | ePM1 80% | 305x305x292 | 4 | 850 | 130 |
| FHS-F9-G-34-305-610-292 | F9 | ePM1 80% | 305x610x292 | 8 | 1700 | 130 |
| FHS-F9-G-34-610-610-292 | F9 | ePM1 80% | 610x610x292 | 16 | 3400 | 130 |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
HIGH CAPACITY FILTER WITH SINGLE PLEAT
(METAL FRAME/G40)
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Dimensions WxHxD (mm) |
Filtration Area (m²) |
Nominal Airflow (m³/h) |
Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|
| FHS-M6-G-40-305-305-292 | M6 | ePM10 75% | 305x305x292 | 6 | 1000 | 60 |
| FHS-M6-G-40-305-610-292 | M6 | ePM10 75% | 305x610x292 | 12 | 2000 | 60 |
| FHS-M6-G-40-610-610-292 | M6 | ePM10 75% | 610x610x292 | 24 | 4000 | 60 |
| FHS-F7-G-40-305-305-292 | F7 | ePM1 55% | 305x305x292 | 6 | 1000 | 80 |
| FHS-F7-G-40-305-610-292 | F7 | ePM1 55% | 305x610x292 | 12 | 2000 | 80 |
| FHS-F7-G-40-610-610-292 | F7 | ePM1 55% | 610x610x292 | 24 | 4000 | 80 |
| FHS-F8-G-40-305-305-292 | F8 | ePM1 70% | 305x305x292 | 6 | 1000 | 100 |
| FHS-F8-G-40-305-610-292 | F8 | ePM1 70% | 305x610x292 | 12 | 2000 | 100 |
| FHS-F8-G-40-610-610-292 | F8 | ePM1 70% | 610x610x292 | 24 | 4000 | 100 |
| FHS-F9-G-40-305-305-292 | F9 | ePM1 80% | 305x305x292 | 6 | 1000 | 130 |
| FHS-F9-G-40-305-610-292 | F9 | ePM1 80% | 305x610x292 | 12 | 2000 | 130 |
| FHS-F9-G-40-610-610-292 | F9 | ePM1 80% | 610x610x292 | 24 | 4000 | 130 |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
