Applications
- Capturing fine particles
Highlights
- Static electricity grounding (optional)
- Corrugated aluminium seperator
- Robust construction
Technical Specifications
| Filter Standard: | ISO 16890 | Max. Operating Tempature: |
80˚C | |
| Filter Class: | ISO ePM1 - ISO ePM2,5 - ISO ePM10 |
Gasket: | Silicon, EPDM and PU Foam |
|
| Media: | Glass fiber | Sealing Compound: | Two component polyurethane, glass fiber |
|
| Frame: | MDF | Seperators: | Corrugated Aluminium | |
| Rec. Final Pressure Drop EN13053: |
Initial ΔP +100 Pa or initial ΔP x3 whichever is lower |
Order Code
| Filter Type | Filter Class |
Frame | Static Electricity Grounding Cable |
Dimensions (mm) | Faceguard | Gasket |
|---|---|---|---|---|---|---|

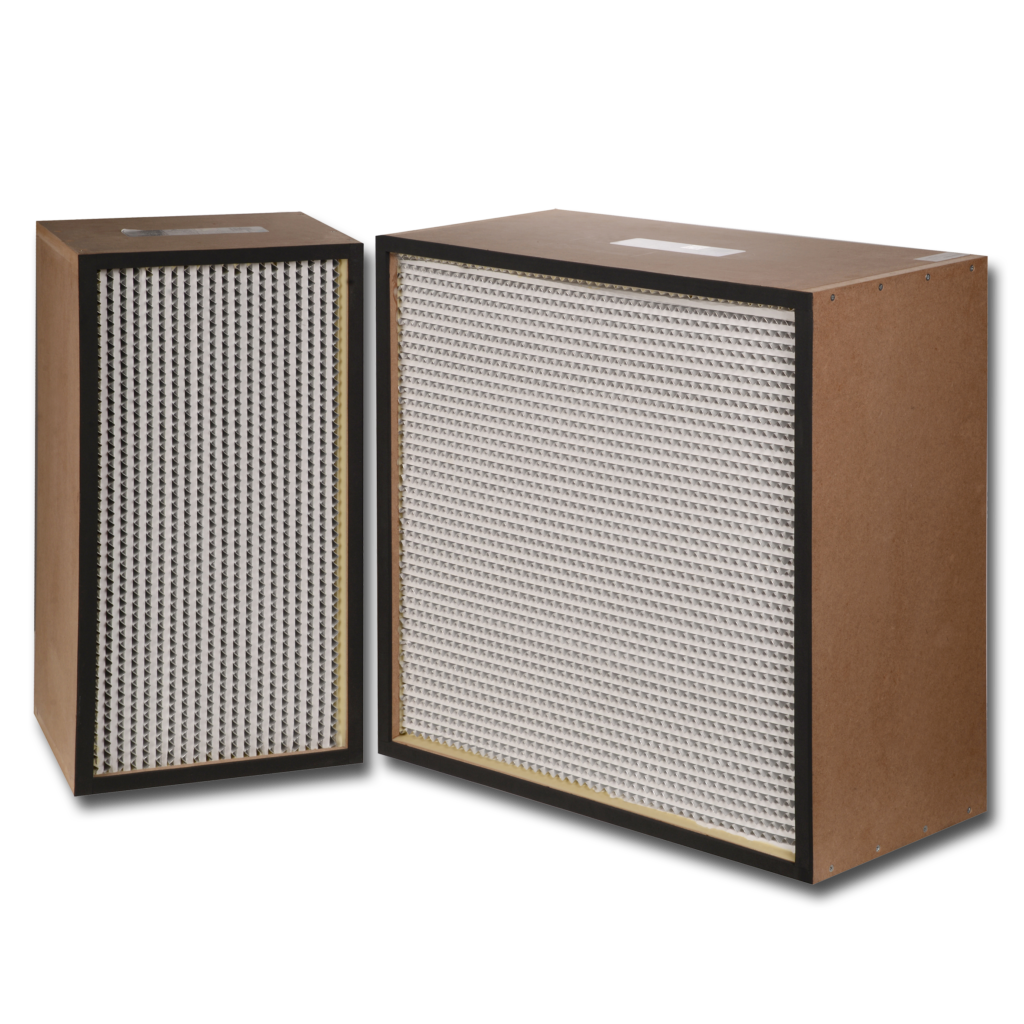

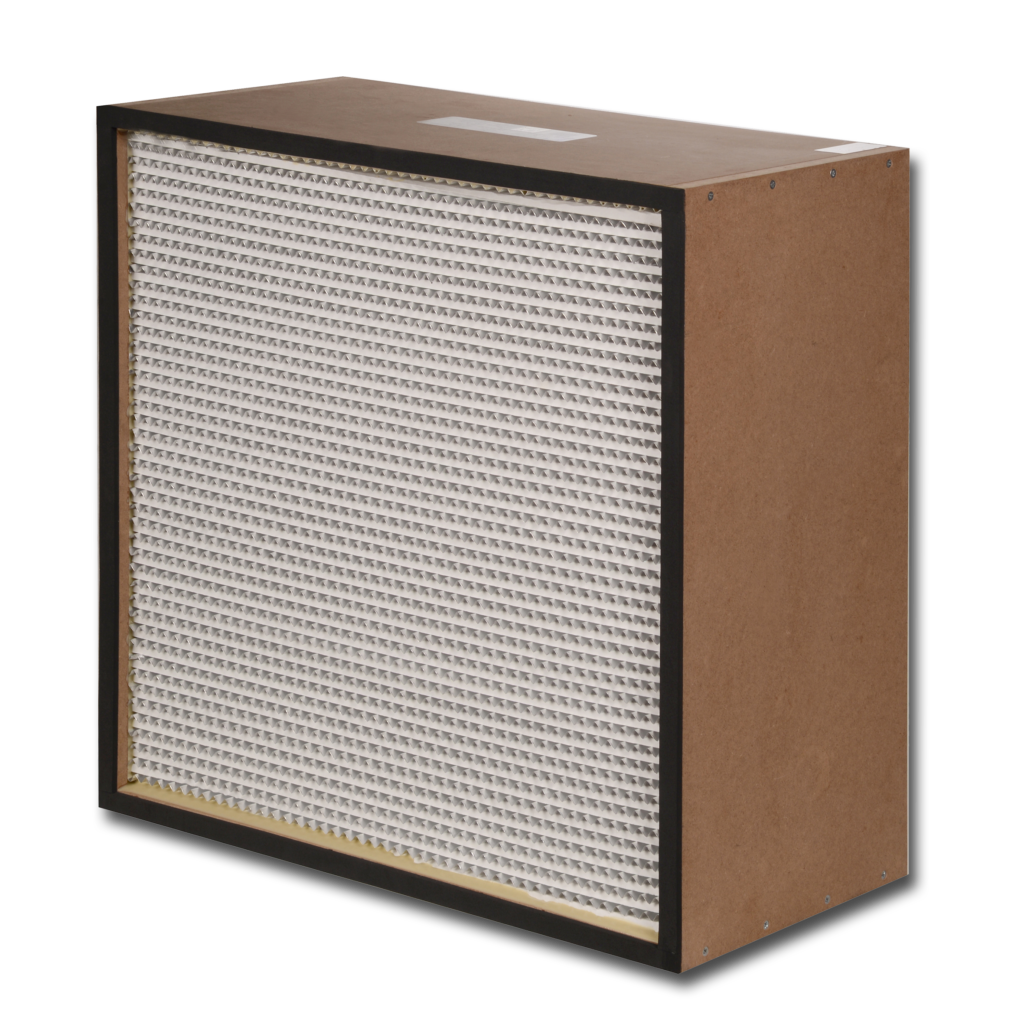

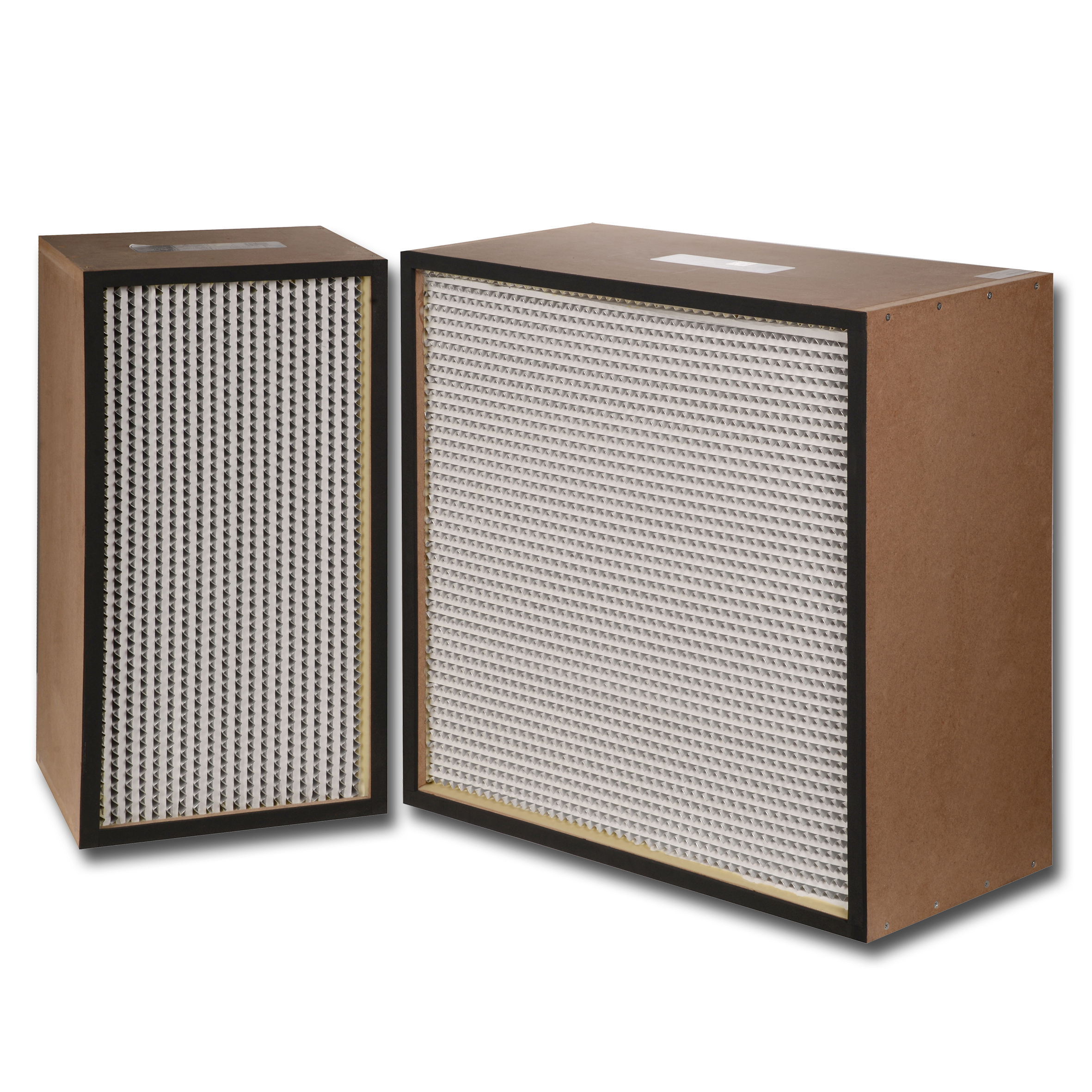

| FCA : Fine Dust Filter with Aluminium Seperator (MDF Frame) |
M6 F7 F8 F9 |
M: MDF | SG: Exist W: Without |
610x610x292 | FW: Without FC: On Clean Side FD: On Dirty Side FB: On Both Sides |
W: Without P: Continuous Pu Foam PP: Pu Foam on Both Side E: EPDM Flat EE: EPDM Flat on Both Side C: Continuous Grey EPDM CC: Grey EPDM on Both Side S: Silicon SS: Silicon on Both Sides |
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Dimensions WxHxD (mm) |
Filtration Area (m²) |
Nominal Airflow (m³/h) |
Initial Pressure Drop (Pa) |
|---|---|---|---|---|---|---|
| FCA-M6-M-W-305-610-292-FW-W | M6 | ePM10 70% | 305x610x292 | 8,5 | 1700 | 85 |
| FCA-M6-M-W-610-610-292-FW-W | M6 | ePM10 70% | 610x610x292 | 17 | 3400 | 85 |
| FCA-F7-M-W-305-610-292-FW-W | F7 | ePM1 55% | 305x610x292 | 8,5 | 1700 | 110 |
| FCA-F7-M-W-610-610-292-FW-W | F7 | ePM1 55% | 610x610x292 | 17 | 3400 | 110 |
| FCA-F8-M-W-305-610-292-FW-W | F8 | ePM1 70% | 305x610x292 | 8,5 | 1700 | 125 |
| FCA-F8-M-W-610-610-292-FW-W | F8 | ePM1 70% | 610x610x292 | 17 | 3400 | 125 |
| FCA-F9-M-W-305-610-292-FW-W | F9 | ePM1 80% | 305x610x292 | 8,5 | 1700 | 150 |
| FCA-F9-M-W-610-610-292-FW-W | F9 | ePM1 80% | 610x610x292 | 17 | 3400 | 150 |
“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
