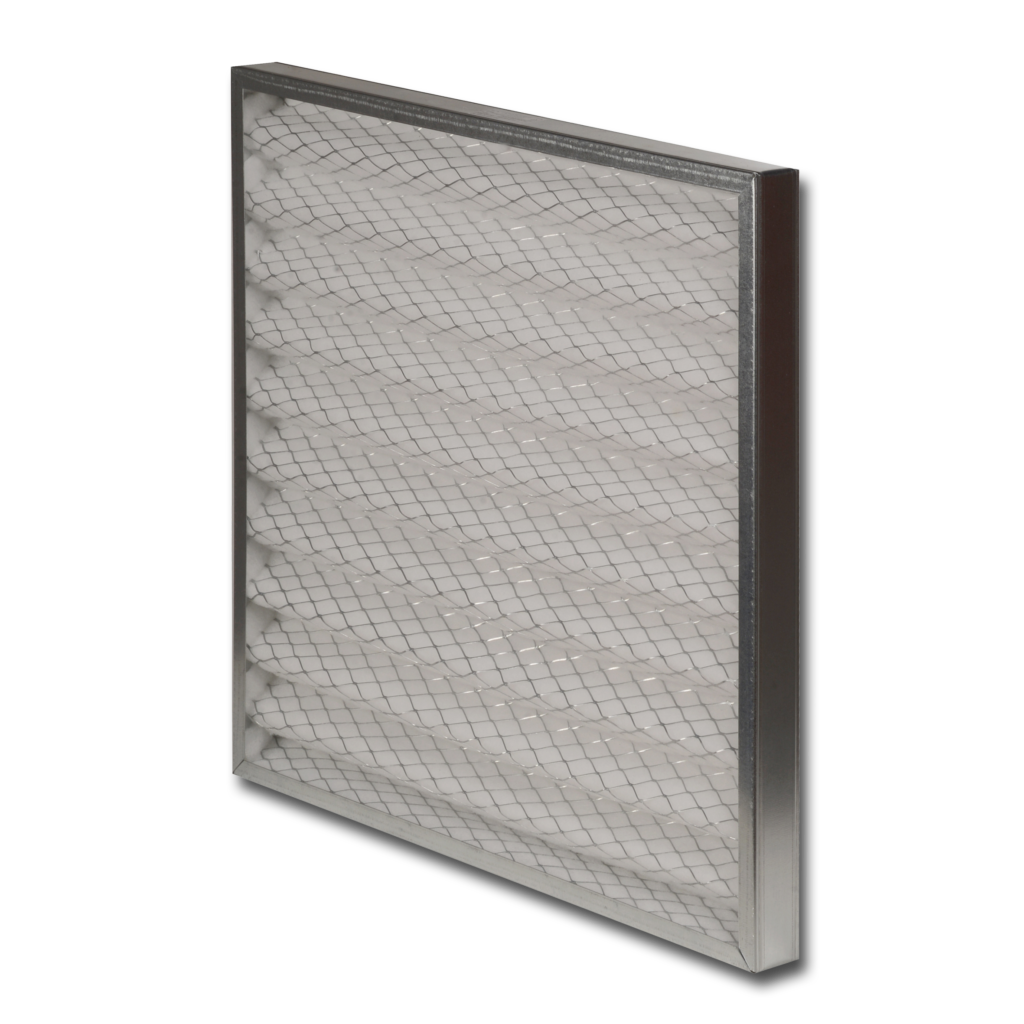

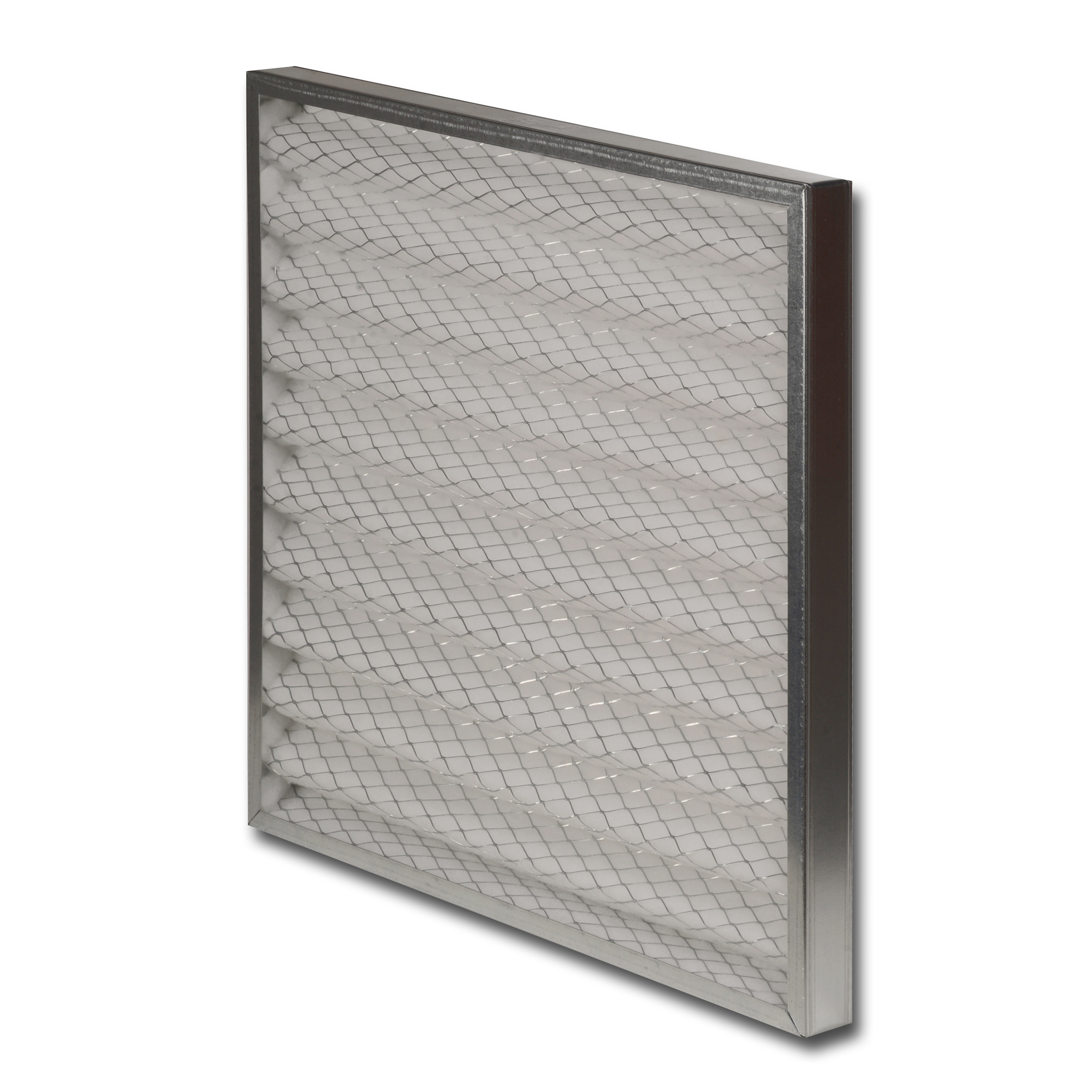

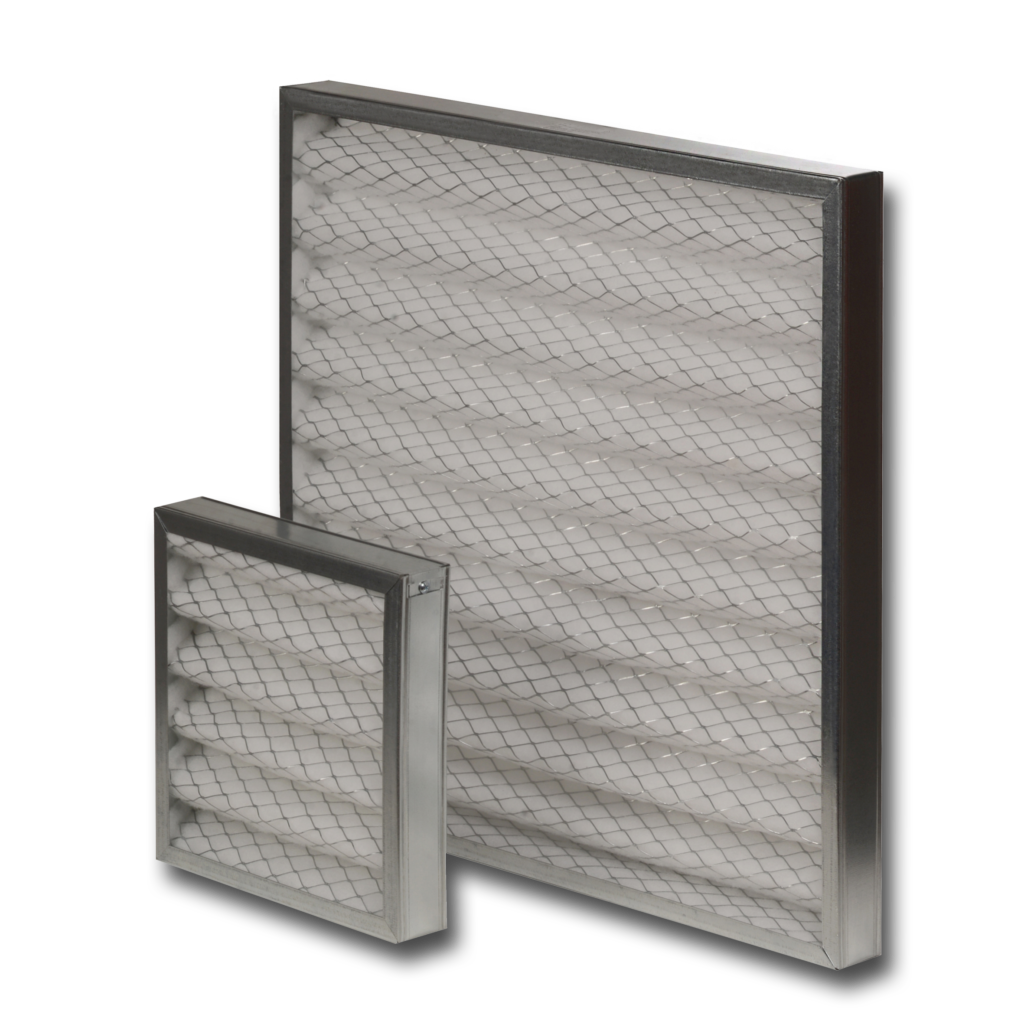

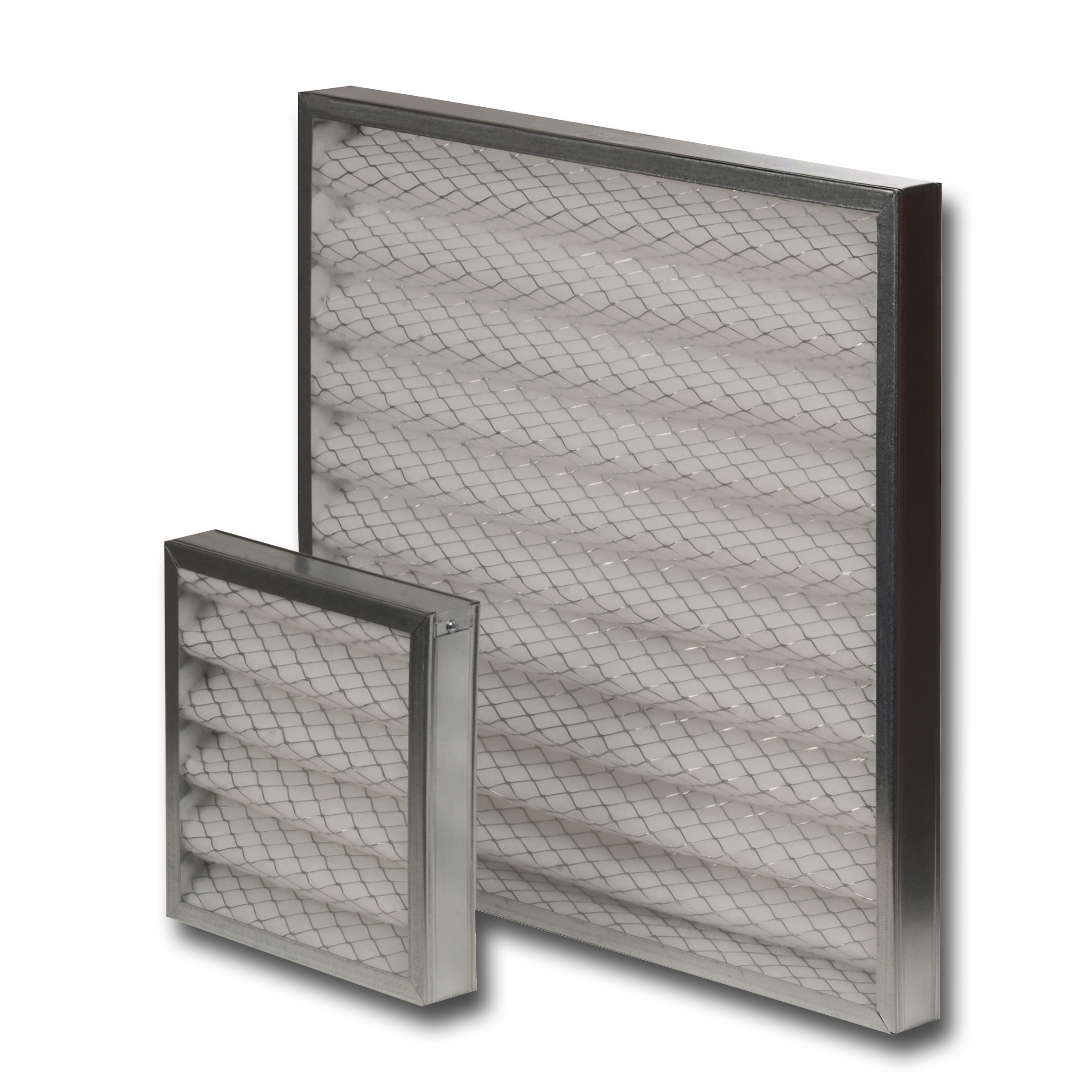

ZIG-ZAG FILTER

Contact us about this product →
ZIG-ZAG FILTER - Ulpatek

Applications

  • Pre-filter for ventilation equipment and HVAC
  • Highly effective with coarse dust

Highlights

  • Robust design
  • Easy installation
  • Various frame sizes with any dimensions

Technical Specifications
Filter Standard: ISO 16890 Rec. Final Pressure Drop EN13053: Initial ΔP +50 Pa or initial ΔP x3
whichever is lower
Filter Class: ISO Coarse Max. Operating Temperature: 80°C
Media: Synthetic Fiber Standard depth: 48 - 96mm
Frame: Galvanized Metal, Stainless Steel

Order Code

Filter Type Filter
Class		 Frame Expanded Metal
(Mesh)		 Capacity Dimensions
(mm)		 Gasket
GZ : Zig-Zag Filter G3
G4		 G: Galvanized 1: Single Side
2: Double Sides		 M Standard
H: High		 592x592x48 W Without
P: Continuous Pu Foam
PP: Pu Foam on Both Sides
E: EPDM
EE: EPDM Flat On Both Sides
C: Continuous Grey EPDM
CC: Grey EPDM on Both Sides

ZIG-ZAG FILTER (M:STANDARD)

Filter Model EN 779
(cancelled)		 ISO 16890 Dimensions
WxHxD
(mm)		 Filtration
Area
(m²)		 Nominal
Airflow
(m³/h)		 Initial
Pressure Drop
(Pa)
GZ-G3-G-2-M-287-287-48-W G3 Coarse 45% 287x287x48 0.1 850 70
GZ-G3-G-2-M-287-437-48-W G3 Coarse 45% 287x437x48 0.2 1220 70
GZ-G3-G-2-M-287-592-48-W G3 Coarse 45% 287x592x48 0.3 1700 70
GZ-G3-G-2-M-437-592-48-W G3 Coarse 45% 437x592x48 0.4 2500 70
GZ-G3-G-2-M-490-592-48-W G3 Coarse 45% 490x592x48 0.5 2800 70
GZ-G3-G-2-M-592-592-48-W G3 Coarse 45% 592x592x48 0.6 3400 70
GZ-G3-G-2-M-287-592-96-W G3 Coarse 45% 287x592x96 0.5 1700 45
GZ-G3-G-2-M-592-592-96-W G3 Coarse 45% 592x592x96 0.9 3400 45
GZ-G4-G-2-M-287-287-48-W G4 Coarse 55% 287x287x48 0.1 850 80
GZ-G4-G-2-M-287-437-48-W G4 Coarse 55% 287x437x48 0.2 1220 80
GZ-G4-G-2-M-287-592-48-W G4 Coarse 55% 287x592x48 0.3 1700 80
GZ-G4-G-2-M-437-592-48-W G4 Coarse 55% 437x592x48 0.4 2500 80
GZ-G4-G-2-M-490-592-48-W G4 Coarse 55% 490x592x48 0.5 2800 80
GZ-G4-G-2-M-592-592-48-W G4 Coarse 55% 592x592x48 0.6 3400 80
GZ-G4-G-2-M-287-592-96-W G4 Coarse 55% 287x592x96 0.5 1700 55
GZ-G4-G-2-M-592-592-96-W G4 Coarse 55% 592x592x96 0.9 3400 55

“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”

ZIG-ZAG FILTER (H:HIGH)

Filter Model EN 779
(cancelled)		 ISO 16890 Dimensions
WxHxD
(mm)		 Filtration
Area
(m²)		 Nominal
Airflow
(m³/h)		 Initial
Pressure Drop
(Pa)
GZ-G3-G-2-H-287-287-48-W G3 Coarse 45% 287x287x48 0.3 850 70
GZ-G3-G-2-H-287-437-48-W G3 Coarse 45% 287x437x48 0.5 1220 70
GZ-G3-G-2-H-287-592-48-W G3 Coarse 45% 287x592x48 0.6 1700 70
GZ-G3-G-2-H-437-592-48-W G3 Coarse 45% 437x592x48 1,0 2500 70
GZ-G3-G-2-H-490-592-48-W G3 Coarse 45% 490x592x48 1.1 2800 70
GZ-G3-G-2-H-592-592-48-W G3 Coarse 45% 592x592x48 1.2 3400 70
GZ-G3-G-2-H-287-592-96-W G3 Coarse 45% 287x592x96 0.8 1700 45
GZ-G3-G-2-H-592-592-96-W G3 Coarse 45% 592x592x96 1.7 3400 45
GZ-G4-G-2-H-287-287-48-W G4 Coarse 55% 287x287x48 0.3 850 85
GZ-G4-G-2-H-287-437-48-W G4 Coarse 55% 287x437x48 0.5 1220 85
GZ-G4-G-2-H-287-592-48-W G4 Coarse 55% 287x592x48 0.6 1700 85
GZ-G4-G-2-H-437-592-48-W G4 Coarse 55% 437x592x48 1,0 2500 85
GZ-G4-G-2-H-490-592-48-W G4 Coarse 55% 490x592x48 1.1 2800 85
GZ-G4-G-2-H-592-592-48-W G4 Coarse 55% 592x592x48 1.2 3400 85
GZ-G4-G-2-H-287-592-96-W G4 Coarse 55% 287x592x96 0.8 1700 55
GZ-G4-G-2-H-592-592-96-W G4 Coarse 55% 592x592x96 1.7 3400 55

“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
