Applications
- Pre-filter for ventilation equipment and HVAC
- Paint booths
Highlights
- High dust holding capacity
- Dust / paint holder
Technical Specifications
| Filter Standard: | ISO 16890 | Rec. Final Pressure Drop EN13053: | 250 Pa | |
| Filter Class: | ISO Coarse | Max. Operating Temperature: | 120 °C | |
| Media: | Glass Fiber | Thickness: | 75 - 100 mm |
Order Code
| Filter Type | Filter Class |
Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|

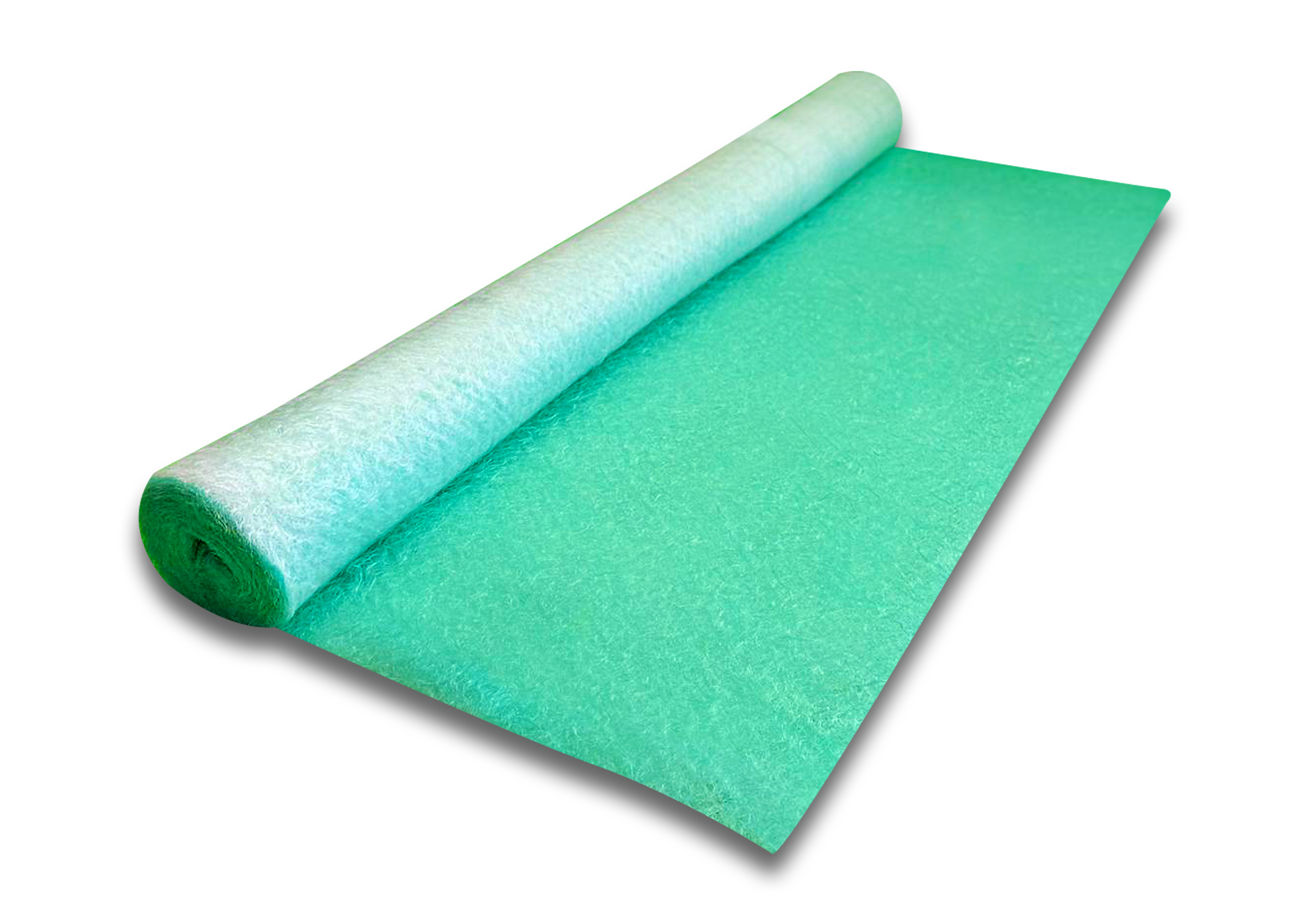

| GC : Glass Fiber Roll Filter |
G3 G4 |
T75 T100 |
1000-2000 | 10,000–20,000 |
| Filter Model | EN 779 (cancelled) |
ISO 16890 | Media Material |
Dimensions WxL (mm) |
Thickness (mm) |
Media Weight (g/m²) |
|---|---|---|---|---|---|---|
| GC-G3-T75-1000-20000 | G3 | Coarse 45% | Glass Fiber | 1.000x20.000 | 75 | 250 |
| GC-G3-T75-2000-20000 | G3 | Coarse 45% | Glass Fiber | 2.000x20.000 | 75 | 250 |
| GC-G4-T100-1000-20000 | G4 | Coarse 55% | Glass Fiber | 1.000x20.000 | 100 | 300 |
| GC-G4-T100-2000-20000 | G4 | Coarse 55% | Glass Fiber | 2.000x20.000 | 100 | 300 |
