Suitable for wall and duct installation. Effective filter surface area by their deep folding is larger than panel filter area. Dust particles penetrate deep into the folds; in this way filter give us high dust holding capacity at low air resistance.

Specifications

• Simple and light weight • Various frame size with any dimensions
• Grid on both sides • Long maintenance intervals
• Changeable synthetic media • Easy installation
• %100 hot deep galvanized frame • High dust holding capacity

Technical Specifications

Filter Class; G3, G4 Final Pressure Drop; 250 Pa
Media; Polyester Max. Operating Temperature; 75 ºC
Frame Type; Galvanized Metal Application; Prefilter for HVAC
Standars Depth; 48 – 96 mm

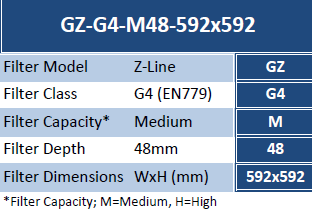

Order code
