Applications

  • Pre-filter for ventilation equipment and HVAC
  • Highly effective with coarse dust

Highlights

  • Middle support prevents bypass between filter pockets

Technical Specifications

Filter Standard:ISO16890Rec. Final Pressure Drop EN13053:Initial ΔP +50 Pa or initial ΔP x3
whichever is lower
Filter Class:ISO CoarseMax. Operating Temperature:80°C
Media:Synthetic FiberFrame depth:20 - 25 mm
Frame:Galvanized

Order Code

Filter TypeFilter
Class
Pocket NumberFlangeDimensions (mm)

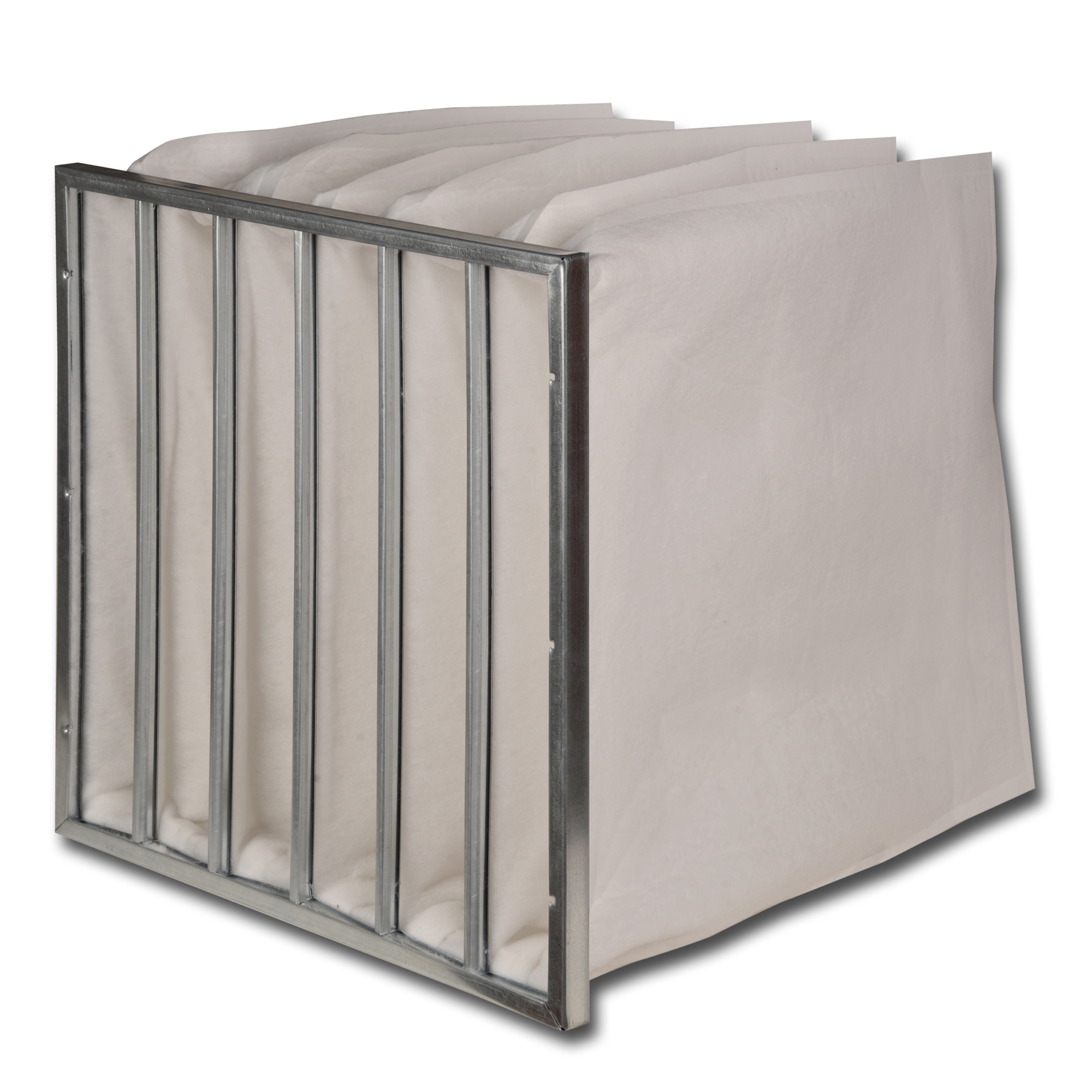

GB : Eco Bag FilterG4P3
P4
P5
P6
P7
P8
P9
P10
20, 25592x592x500
Filter ModelEN 779
(cancelled)
IS016890Dimensions
WxHxD
(mm)
Pocket
Number
Filtration
Area
(m²)
Nominal
Airflow
(m³/h)
Initial
Pressure Drop
(Pa)
GB-G4-P3-25-287-592-360G4Coarse 55%287x592x36032.4170050
GB-G4-P5-25-490-592-360G4Coarse 55%490x592x36054280050
GB-G4-P6-25-592-592-360G4Coarse 55%592x592x36064.8340050
GB-G4-P3-25-287-592-500G4Coarse 55%287x592x50033.5170045
GB-G4-P5-25-490-592-500G4Coarse 55%490x592x50055.8280045
GB-G4-P6-25-592-592-500G4Coarse 55%592x592x50067340045
GB-G4-P3-25-287-592-600G4Coarse 55%287x592x60034170040
GB-G4-P5-25-490-592-600G4Coarse 55%490x592x60056.7280040
GB-G4-P6-25-592-592-600G4Coarse 55%592x592x60068340040

“Other dimensions are available on request.”
“Differential Pressure Tolerance ( ±10% + 5 Pa ) or ( 10 Pa + 5 Pa ) whichever is greater”
